Eaton UTGX714D7S Receptacle - IP68/69K Ruggedized
Part Number: UTGX714D7S
Quick Summary
Eaton UTGX714D7S ruggedized PCB receptacle delivers reliable connectivity for machinery operating in harsh environments. Many harnesses fail in dusty, vibrating settings; UTGX714D7S mitigates this with sealed IP68/69K protection and rugged construction. It carries RoHS, REACH, and UL94 V0 ratings, aligning with compliance needs for industrial and automotive-adjacent applications. Its compact D7 layout with seven PCB contacts, delivered mounted, and a design that supports up to 500 mating cycles, helps reduce field failures and lifecycle costs in automation and off-highway equipment.
Product Information
Extended Description

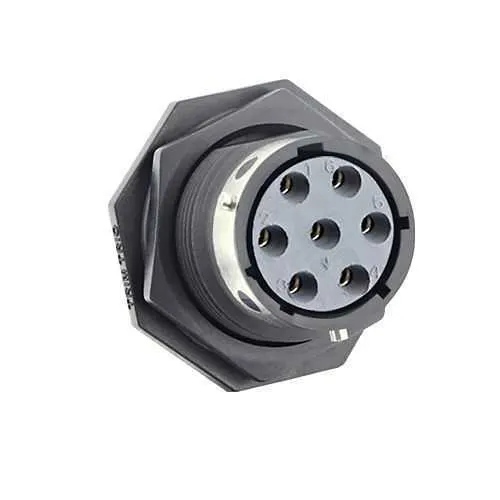

UTGX714D7S Eaton: Jam nut receptacle, without backshell, with 7 female PCB contacts, IP68/69K in unmated conditions; UTGX714D7S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D7S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Fitted with:
Layout with ground cavity
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D7
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
The UTGX714D7S features a jam nut receptacle with 7 PCB contacts and a 1/3 bayonet coupling, delivering a compact D7 layout that simplifies panel integration and reduces enclosure footprint, translating to cost and time savings on installation projects. The IP68/69K sealing in unmated conditions protects against dust and water ingress, enabling reliable operation in wash-down zones and outdoor installations. With a wide operating temperature range of -40 °C to 105 °C, the connector remains performant across extreme climates, minimizing the need for a separate heater or enclosure. RoHS, REACH, and UL94 V0 compliance ensure regulatory alignment for regulated processes, while the grounded cavity layout supports robust EMI/RFI shielding in control cabinets. Delivered with the connector mounted, UTGX714D7S accelerates assembly on production lines and reduces field wiring errors. The 500 mating cycles rating signals long service life in vibration-prone machinery, lowering maintenance costs and downtime.
