Eaton UTGX714D7S32 Receptacle - IP68/69K unmated
Part Number: UTGX714D7S32
Quick Summary
UTGX714D7S32 Receptacle by Eaton provides rugged PCB connectivity for harsh-environment automation equipment. Designers often struggle with water, dust ingress, and costly field maintenance when equipment must operate in confined or outdoor installations. The UTGX series exceeds expectations with IP68/69K sealing in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance, delivering safety and long-term reliability. This combination reduces unplanned downtime and maintenance costs while simplifying certification processes. With a compact D7 layout and seven PCB contacts, it fits tight enclosures and streamlines assembly. In industrial settings from robotics to packaging lines, you gain robust performance, easier serviceability, and a clear path to compliant, cost-effective connectivity.
Product Information
Extended Description

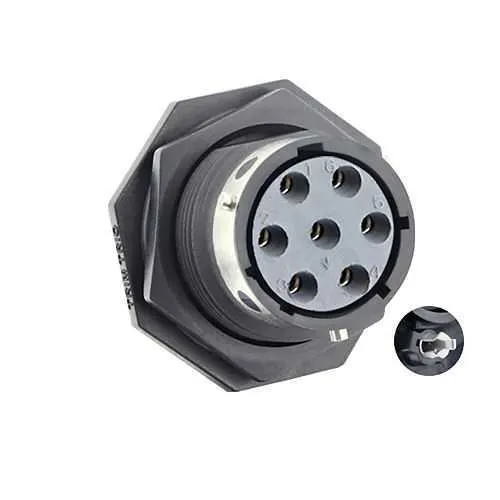

UTGX714D7S32 Eaton: Jam nut receptacle & hold down clips,without backshell, with 7 female PCB contacts, IP68/69K in unmated conditions; UTGX714D7S32
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714D7S32
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
19 g
Fitted with:
Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Delivered with the connector, mounted
Contact gender
Socket (Female)
Contact type
PCB
Coupling type
1/3 Bayonet
Layout
D7
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #16
7
Salt spray
500 hour
IP68/69K sealing in unmated conditions protects against water and dust ingress, reducing field failures and maintenance costs in outdoor and wash-down environments. This also enables longer service intervals for robotics and packaging lines, improving uptime. The jam nut receptacle design and absence of a backshell option simplify installation and procurement, shortening project lead times and reducing part count. A 1/3 Bayonet coupling provides quick, secure mating with vibration resistance, keeping critical connections intact in rugged machinery. Seven PCB contacts in a D7 layout deliver compact, reliable connectivity for tight panels and console enclosures. With operating temps from -40 °C to 105 °C, salt spray resistance for 500 hours, and RoHS/REACH compliance, this connector meets stringent industrial and automotive-grade standards. The Souriau UTGX series is well-regarded in automation, robotics, and outdoor equipment, giving OEMs a predictable, scalable solution.
