Eaton UTGX714E12P Receptacle - IP68/69K Ruggedized
Part Number: UTGX714E12P
Quick Summary
Eaton UTGX714E12P ruggedized receptacle delivers sealed, reliable connectivity for harsh environments and demanding machinery. This 12-contact jam-nut connector minimizes downtime by withstanding ingress and corrosion in outdoor or mobile applications. Engineers often battle dust ingress, moisture exposure, and contact reliability under extreme conditions; the UTGX714E12P helps reduce field service, warranty costs, and late-stage design changes. It meets IP68/69K in unmated conditions, RoHS and REACH compliance, and UL94 V0 flammability rating for safety-critical equipment. With a 1/3 bayonet coupling and loaded contacts, installation is straightforward, while the Souriau UTGX series compatibility supports standardization across fleets, simplifying procurement and training in industrial settings.
Product Information
Extended Description

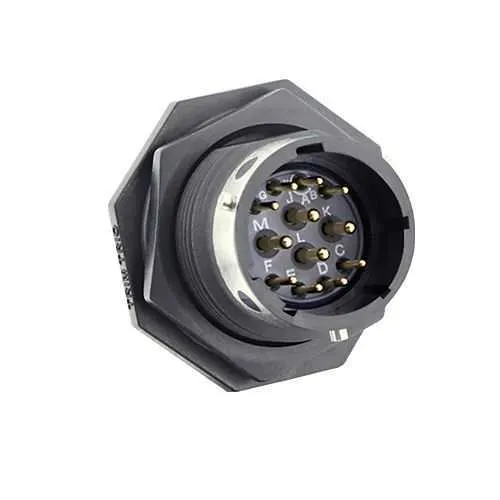

UTGX714E12P Eaton: Jam nut receptacle, without backshell, with 12 male solder contacts, IP68/69K in unmated conditions; UTGX714E12P
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E12P
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Feature: IP68/69K unmated protection and rugged metal/plastic shell → Business Impact: Proven ingress resistance and long-term durability reduce unplanned downtime in harsh environments. Application: Outdoor automation, mining equipment, and heavy machinery installations. Feature: 12 solder cup male contacts with 12 cavities → Business Impact: Reliable signal and power delivery with robust electrical performance, lowering failure rates and maintenance checks. Application: Harsh-duty control panels and mobile machines. Feature: 1/3 Bayonet coupling → Business Impact: Faster mating and disassembly in field service, reducing maintenance time by minutes per connector. Application: Fleet vehicles and on-site assembly lines. Feature: 500 mating cycles → Business Impact: High durability translates to lower replacement costs and extended service life in wear-intensive environments. Application: Repetitive connect/disconnect cycles in automation systems. Feature: Jam Nut Receptacle with no backshell option → Business Impact: Simplified mounting and sealed installation without additional hardware, decreasing BOM complexity. Application: Panel-mounted enclosures and compact control boxes. Feature: Operating temperature range -40 °C to 105 °C and RoHS/REACH/UL94 V0 → Business Impact: Compliance and reliability across extreme outdoor and automotive applications, supporting regulated industries. Application: Robotics, outdoor equipment, and harsh-environment controls. Feature: Shell size 14, weight 16 g, 24.5 mm depth, 30.2 mm height and width → Business Impact: Compact footprint and predictable harness routing improve cabinet design and installation efficiency. Application: Space-constrained automation and vehicle systems. Feature: 12 contacts with solder cup type and loaded contact delivery → Business Impact: Ready-to-wire performance reduces assembly steps and post-install testing. Application: High-density control panels and wiring harnesses.
Get a Quick Quote for a Eaton UTGX714E12P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714E12P?
Enquire Now
FAQs
The UTGX714E12P is a jam-nut receptacle with no backshell option, designed for panel mounting. Plan for a compatible panel cutout, secure seating with the jam nut, and ensure proper sealing against environmental exposure. Use the 1/3 bayonet coupling for fast mating and maintain the 12-cavity, 12-contact configuration with solder cup contacts for reliable electrical connections.
Key specs include 12 solder cup male contacts in a 12-cavity layout, 1/3 bayonet coupling, a shell size of 14, and a weight of 16 g. It operates from -40 °C to 105 °C, supports up to 500 mating cycles, and carries IP68/69K sealing in unmated conditions. It is built with a metal/plastic shell and adheres to RoHS, REACH, and UL94 V0 standards.
Industries such as outdoor automation, mining, construction, robotics, and mobile equipment benefit from its rugged sealing, compact form, and high durability. Applications include control panels in harsh environments, vehicle systems, and machinery that endure dust, moisture, and temperature extremes while requiring reliable, quick-connect/disconnect functionality.
Yes, it is part of the Souriau UTGX series and shares compatibility with UTGX mating parts. Note that this model is a jam-nut receptacle with no backshell option, so plan harness routing and sealing accordingly. The 1/3 bayonet coupling provides quick mating, while the loaded contacts streamline assembly in standard UTGX configurations.
The UTGX714E12P meets RoHS and REACH environmental requirements and has UL94 V0 flammability rating. It also achieves IP68/69K sealing in unmated conditions, ensuring protection against water ingress in harsh environments, which is critical for safety and reliability in regulated industries.
