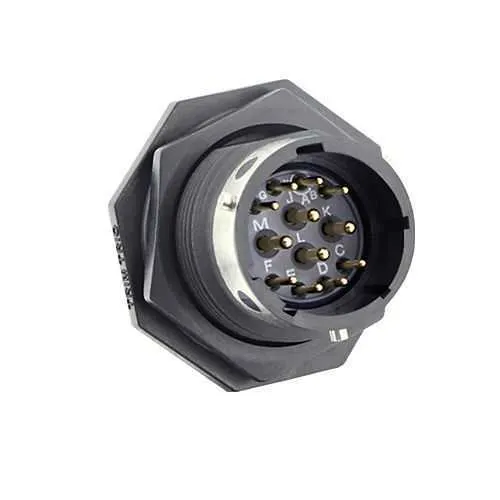

Eaton UTGX714E12PX Receptacle - IP68/IP69K Ruggedized
Part Number: UTGX714E12PX
Quick Summary
Eaton UTGX714E12PX Receptacle is a ruggedized connector designed for harsh industrial environments and demanding machinery wiring. This solution addresses field maintenance challenges by delivering a sealed, reliable interface that minimizes water ingress and corrosion risks. Key protections include IP68/69K ratings in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance, ensuring safe operation across complex supply chains. Built for OEMs and integrators, it supports tight installations while delivering dependable connectivity. The UTGX series combines robust metal and plastic shells with a compact 24.5 mm depth and 30.2 mm width/height footprint, offering a proven balance of space efficiency and durability. Expect easy assembly, consistent performance, and reduced lifecycle costs in rugged automation applications.
Product Information
Extended Description
UTGX714E12PX Eaton: Jam nut receptacle, without backshell, with 12 male solder contacts, IP68/69K in unmated conditions, keying X; UTGX714E12PX
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E12PX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
The UTGX714E12PX exposes a clear Feature → Business Impact → Application path: 12 solder cup contacts provide a reliable, field-serviceable interface for signal and power paths, enabling quick repairs and reduced downtime in harsh environments. This yields measurable cost savings and improved machine uptime in mining, construction, and outdoor equipment where ingress protection is critical. Its 1/3 Bayonet coupling supports fast mating and secure retention, improving installation efficiency on production lines and field service jobs alike, especially when wiring looms require frequent reconfiguration. The jam nut receptacle design eliminates the backshell, which simplifies enclosure integration and reduces BOM complexity, while still offering IP68/69K protection, RoHS/REACH compliance, and UL94 V0 fire safety—vital for safety-critical automation systems. With a 12-contact layout and 500 mating cycles, it is well-suited for high-relIability control panels and mobile machinery. The UTGX series also benefits from Loaded contact delivery, ensuring ready-to-connect readiness, and a shell configured for X orientation, streamlining installation in tight spaces. Overall, this connector family supports durable automation in harsh environments, delivering robust performance with predictable maintenance intervals and improved return on investment.
