Eaton UTGX714E12S Receptacle - IP68/IP69K Rugged
Part Number: UTGX714E12S
Quick Summary
UTGX714E12S rugged receptacle provides reliable power and signal connections for harsh environments in industrial automation and mobile equipment. Engineers frequently contend with vibration, sealing failures, and tight routing in compact installations, making dependable connectors a bottleneck. It carries IP68/69K sealing in unmated conditions, UL94 V0 flame rating, and RoHS/REACH compliance to help you meet stringent safety and environmental standards. The 12-socket solder cup configuration, together with a jam-nut receptacle design and 500 mating cycles, supports long service life and lower maintenance costs. This compact, backshell-free interface simplifies mounting in rugged enclosures while delivering consistent performance across demanding applications.
Product Information
Extended Description

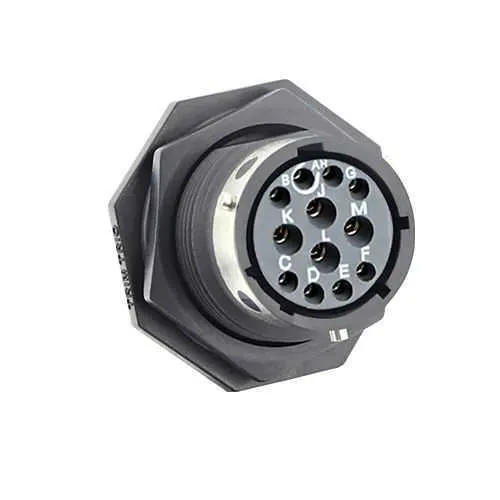

UTGX714E12S Eaton: Jam nut receptacle, without backshell, with 12 female solder contacts, IP68/69K in unmated conditions; UTGX714E12S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E12S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
Rugged sealing and material resilience translate to real-world uptime in washdown environments and outdoor equipment, reducing the risk of water and dust ingress and the need for frequent replacements. The 12 solder cup contacts deliver secure electrical performance for power and signal paths, while the 1/3 bayonet coupling provides rapid, vibration-resistant mating in cramped panels. The jam-nut receptacle design enables straightforward panel installation with minimal additional hardware, saving assembly time and cost. Operating temperatures from -40 °C to 105 °C support equipment deployed in cold facilities or exposed outdoor sites, with salt spray endurance enhancing corrosion resistance for coastal or industrial atmospheres. RoHS and REACH compliance paired with UL94 V0 flame rating assure regulatory alignment and safer, compliant deployments, reducing risk in regulated industries. Overall, the UTGX714E12S offers a compact, backshell-free solution with consistent electrical and mechanical performance across high-mix automation environments.
