Eaton UTGX714E12SW Receptacle - IP68/69K Rugged
Part Number: UTGX714E12SW
Quick Summary
The Eaton Souriau UTGX714E12SW is a rugged jam-nut receptacle connector designed for harsh environments in industrial machinery and mobile equipment. Too often, ingress protection and unreliable terminations drive costly downtime in wash-down zones and dusty installations. This connector delivers IP68/69K sealing in unmated conditions, RoHS and REACH compliance, and UL94 V0 flammability, providing essential safety and regulatory assurance. With 12 solder cup contacts, a 1/3 bayonet coupling, and a wide -40 to 105 °C operating range, it enables fast, reliable field installation and predictable lifecycle performance. Designed for compatibility with the Souriau UTGX family, it supports compact layouts and efficient harness routing, helping engineers reduce panel space and installation time.
Product Information
Extended Description

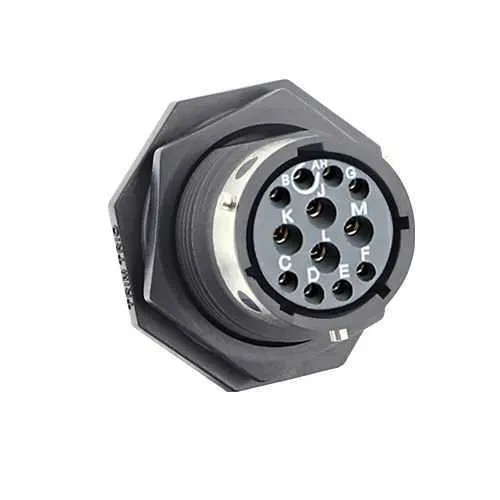

UTGX714E12SW Eaton: Jam nut receptacle, without backshell, with 12 female solder contacts, IP68/69K in unmated conditions, keying W; UTGX714E12SW
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E12SW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E12
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
12
Number of cavity #16
12
Salt spray
500 hour
IP68/69K sealing delivers dependable protection against dust and moisture, reducing ingress-related failures. This translates to fewer unplanned maintenance events and lower spare-part costs in harsh environments. It’s especially valuable for mobile equipment, outdoor automation projects, and industrial machinery where reliability under tough conditions is critical. The jam-nut receptacle design with no backshell reduces installed length and simplifies mounting through panel cutouts, improving harness routing and reducing accessory costs while maintaining robust IP sealing and keying features. For wiring, the twelve solder cup contacts provide high-density connectivity in a compact shell size 14, enabling streamlined harness design and improved signal integrity under vibration. The loaded contact delivery further speeds assembly and minimizes field rework. With 500 mating cycles and a 1/3 bayonet coupling, installation is faster, repeatable, and less prone to misalignment, supporting efficient panel integration in production lines and service operations. Its -40 to 105 °C operating range and metal/plastic shell deliver durability across global installations, while RoHS and REACH compliance align with sustainability goals and procurement standards.
