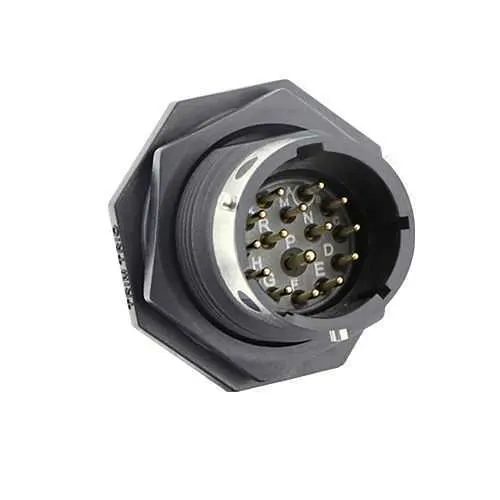

Eaton UTGX714E15P Receptacle - IP68/69K Ruggedized
Part Number: UTGX714E15P
Quick Summary
The Eaton Souriau UTGX714E15P ruggedized receptacle delivers reliable power and signal connections for harsh industrial environments. In the field, installers confront water ingress, vibration, and difficult maintenance access; this design mitigates those challenges with robust sealing and durable construction. It carries IP68/69K protection in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance to meet key safety and sustainability requirements. The compact 24.5 mm depth and 15-contact layout support tight panel fits, while a 500-mating-cycle capability helps reduce lifecycle downtime and replacement costs for critical automation systems.
Product Information
Extended Description
UTGX714E15P Eaton: Jam nut receptacle, without backshell, with 15 male solder contacts, IP68/69K in unmated conditions; UTGX714E15P
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E15P
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E15
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
15
Salt spray
500 hour
Feature → Business Impact → Application: The UTGX714E15P uses a jam nut receptacle with 15 solder cup contacts, delivering secure, vibration-resistant joints that translate to fewer field retightenings and less downtime in heavy machinery and robotics. This directly reduces maintenance costs and improves uptime in automated lines. Application: suitable for harsh environments such as welding, stamping, and outdoor equipment where reliable solder connections are essential. Feature → Business Impact → Application: IP68/69K sealing in unmated conditions provides superior ingress protection against dust and washdowns, enabling high-pressure cleaning and outdoor use without compromising performance. Application: washdown-ready panels and exterior control housings in food processing or water treatment. Feature → Business Impact → Application: operating temperature range from -40 °C to 105 °C ensures reliable operation across wide seasonal and process variations, minimizing thermal-related failures and warranty risks. Application: earth-moving equipment, marine environments, and rugged conveyors. Feature → Business Impact → Application: 1/3 Bayonet coupling offers quick, tool-free mating and demating with repeatable alignment, reducing installation time by minutes per connector and improving现场 assembly efficiency. Application: panel assemblies and machine enclosures requiring fast field maintenance. Feature → Business Impact → Application: 15 contacts in a compact shell size 14 with a jam nut receptacle supports dense wiring harnessing, enabling more compact control panels and easier cable management. Application: automated gearboxes, servo drives, and smart sensors in tight spaces. Feature → Business Impact → Application: RoHS, REACH compliance with UL94 V0 rating ensures safety, environmental compliance, and simplified supplier audits for regulated industries. Application: medical device manufacturing, automotive, and consumer electronics assembly lines that demand traceable material compliance.
