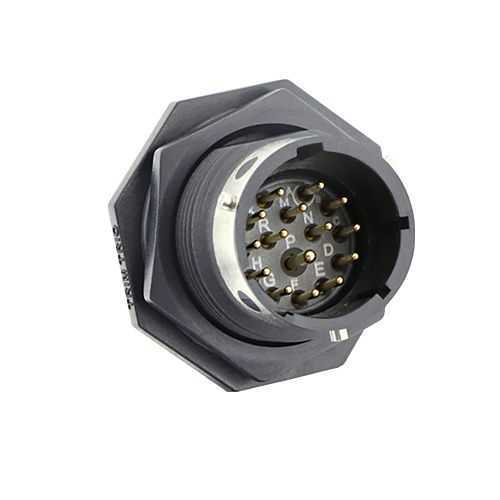

Eaton UTGX714E15PY Jam Nut Receptacle - IP68/69K
Part Number: UTGX714E15PY
Quick Summary
Eaton Souriau UTGX series ruggedized connectors enable reliable, high-performance connections for harsh environments in industrial automation and outdoor equipment. This model, UTGX714E15PY, addresses common maintenance and ingress challenges by offering a compact jam-nut receptacle with 15 solder cup contacts. With IP68/69K sealing in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance, it meets stringent safety and environmental standards. The combination of a 1/3 bayonet coupling, Y-keying, and a no backshell option simplifies installation, reduces assembly time, and lowers total cost of ownership in demanding settings. For design engineers and procurement teams, this connector provides a robust, future-ready solution with proven durability.
Product Information
Extended Description
UTGX714E15PY Eaton: Jam nut receptacle, without backshell, with 15 male solder contacts, IP68/69K in unmated conditions, keying Y; UTGX714E15PY
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E15PY
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E15
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
15
Salt spray
500 hour
Feature: Jam nut receptacle with 15 solder cup contacts. Benefit: Simplifies trench-through panel wiring and enables reliable solder connections in tight spaces, reducing assembly time and potential rework in control panels. Application: Industrial machinery and washdown areas where panel density is high and maintenance windows are limited.Feature: IP68/69K in unmated conditions. Benefit: Provides superior ingress protection against water, dust, and high-pressure washdowns, increasing uptime in harsh environments. Application: Outdoor equipment, drilling rigs, and marine installations that endure rough treatment and frequent cleaning.Feature: 1/3 Bayonet coupling with Y-keying. Benefit: Fast, repeatable mating with precise alignment, cutting installation time and ensuring correct channeling in dense harnesses. Application: High-vibration environments where quick field servicing is essential.Feature: Operating temperature range -40 °C to 105 °C. Benefit: Maintains performance across extreme ambient conditions, reducing temperature-related failures. Application: Equipment exposed to cold starts, high-temperature operation, and outdoor weather cycles.Feature: Solder Cup contact delivery with 15 contacts. Benefit: Reliable soldered connections that resist vibration and thermal cycling, improving reliability and reducing field repair costs. Application: Control and power circuits within rugged automation panels.Feature: RoHS, REACH, and UL94 V0 compliant. Benefit: Ensures regulatory alignment and safer waste disposal while meeting fire-safety standards. Application: Medical, food-processing, and general industrial environments requiring strict compliance.
