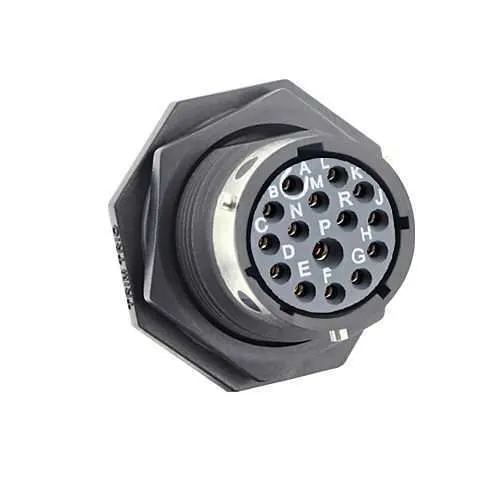

Eaton UTGX714E15SW Receptacle - IP68/IP69K ruggedized
Part Number: UTGX714E15SW
Quick Summary
Eaton UTGX714E15SW is a ruggedized receptacle designed for harsh environments in industrial automation. When field installations face moisture, dust, and vibration, reliability and sealing become a maintenance driver—this design minimizes downtime with IP68/69K sealing and 15 solder-cup contacts. It delivers robust protection and material safety by meeting RoHS and UL94 V0 flammability requirements, supporting RoHS/REACH compliance in global supply chains. Built for seamless integration in the UTGX family, the jam-nut receptacle helps streamline harness assembly and field service, delivering predictable performance and cost management for OEMs and end users alike.
Product Information
Extended Description
UTGX714E15SW Eaton: Jam nut receptacle, without backshell, with 15 female solder contacts, IP68/69K in unmated conditions, keying W; UTGX714E15SW
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E15SW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E15
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
15
Salt spray
500 hour
Feature: 15 solder cup contacts provide a dense, secure electrical connection. Benefit: Reduces assembly steps and contact fatigue, improving reliability in high-vibration environments. Application: automation controllers and power distribution harnesses benefit from faster, safer terminations and consistent signal integrity. Feature: 1/3 Bayonet coupling delivers quick mating with high resistance to loosening under vibration. Benefit: Faster field assembly and maintenance without compromising seal integrity. Application: heavy industrial machinery and mobile equipment where rapid connector cycles are common. Feature: IP68/69K sealing in unmated conditions protects against water ingress and dust intrusion. Benefit: Extended uptime in wash-down areas, coastal climates, and outdoor installations. Application: food processing lines, outdoor conveyors, and automated packaging systems. Feature: Operating temperature range from -40 °C to 105 °C enables operation in extreme environments. Benefit: Maintains performance across cold starts and hot cycles, reducing cooling requirements. Application: outdoor robotics, mining equipment, and inland transportation systems. Feature: 500 mating cycles indicate durable lifecycle under regular maintenance. Benefit: Lower replacement costs and longer service intervals. Application: long-life equipment and complex automation systems where downtime is costly. Feature: Jam Nut Receptacle with no backshell option and W orientation supports compact assemblies. Benefit: Simpler installation in tight spaces with reliable alignment. Application: compact harnesses in robotics and machine tools.
