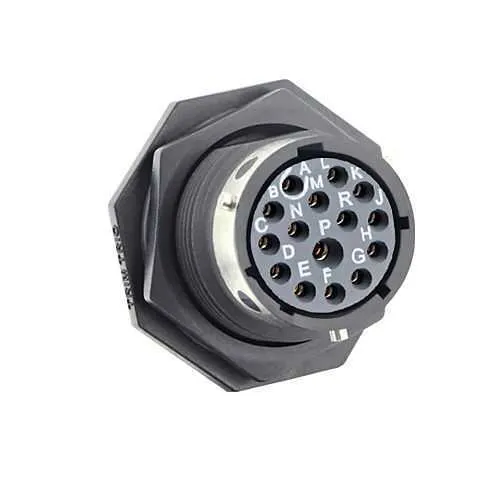

Eaton UTGX714E15SY Receptacle - IP68/69K ruggedized
Part Number: UTGX714E15SY
Quick Summary
UTGX714E15SY is a ruggedized receptacle from Eaton built for harsh industrial environments and demanding equipment. When space is tight and exposure to dust, moisture, and temperature swings threatens uptime, reliability matters. This design delivers IP68/69K sealing, UL94 V0 flammability, and RoHS/REACH compliance to support safety and regulatory needs. Its jam-nut receptacle with 1/3 bayonet coupling enables quick field mating and reduces maintenance downtime, while 15 solder-cup contacts ensure robust signal integrity for critical automation applications.
Product Information
Extended Description
UTGX714E15SY Eaton: Jam nut receptacle, without backshell, with 15 female solder contacts, IP68/69K in unmated conditions, keying Y; UTGX714E15SY
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E15SY
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E15
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
15
Salt spray
500 hour
Feature: IP68/69K sealing and rugged metal-plastic shell. Business Impact: Exceptional ingress protection reduces contamination risk and extends lifecycle in washdown and dusty environments. Application: Heavy machinery, outdoor equipment, and conveyor systems benefit from reliable performance. Feature: 15 solder cup female contacts loaded in the receptacle. Business Impact: Streamlined field termination and dependable electrical connectivity under vibration. Application: Power and signal distribution in compact installations where space is limited. Feature: 1/3 Bayonet coupling with jam nut receptacle. Business Impact: Fast, secure mating with vibration resistance minimizes downtime during maintenance or upgrades. Application: Rapid panel assemblies on crowded control panels. Feature: Operating temperature range -40 °C to 105 °C. Business Impact: Wide climatic tolerance reduces the need for enclosure heating or cooling, lowering energy use. Application: Outdoor and industrial environments with temperature extremes. Feature: Mating cycles rated at 500. Business Impact: Predictable lifecycle costs with lower replacement frequency and maintenance planning. Application: Continuous operation lines and long-term automation deployments. Feature: Salt spray resistance (500 hours). Business Impact: Corrosion protection in humid or coastal facilities; extends service intervals. Application: Marine-adjacent or humid industrial plants.
Get a Quick Quote for a Eaton UTGX714E15SY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714E15SY?
Enquire Now
FAQs
UTGX714E15SY uses a jam nut receptacle with a compact shell size of 14 and a 24.5 mm length. Its 1/3 bayonet coupling simplifies mating in constrained panels, while the no backshell option reduces overall connector diameter. For best results, plan for sufficient clearance around the mating face and ensure correct keying (Y) to avoid misalignment during installation.
The UTGX714E15SY supports up to 500 mating cycles, indicating good lifecycle durability for routine maintenance. It operates from -40 °C to 105 °C, offering broad climatic tolerance for outdoor and industrial environments. Its 15 solder cup contacts maintain signal integrity under vibration, making it suitable for dynamic machinery applications.
Yes. The UTGX714E15SY features IP68/69K sealing in unmated conditions, a rugged metal-plastic shell, and corrosion resistance specified by salt spray ratings. It also complies with UL94 V0 flammability and RoHS/REACH, making it a robust choice for outdoor equipment, washdown areas, and coastal facilities while meeting safety and environmental regulations.
UTGX714E15SY is rated IP68/69K in unmated conditions and adheres to UL94 V0 flammability standards. It is RoHS and REACH compliant, ensuring restricted hazardous substances are avoided and compliant disposal is supported. These certifications help meet industry safety and environmental requirements for industrial automation deployments.
The 1/3 bayonet coupling and jam nut receptacle enable faster field mating and ease of service, reducing downtime during inspections or upgrades. With 500 mating cycles and robust sealing, you can expect longer intervals between replacements, lower maintenance costs, and improved uptime for line-side controls and remote equipment in harsh environments.
