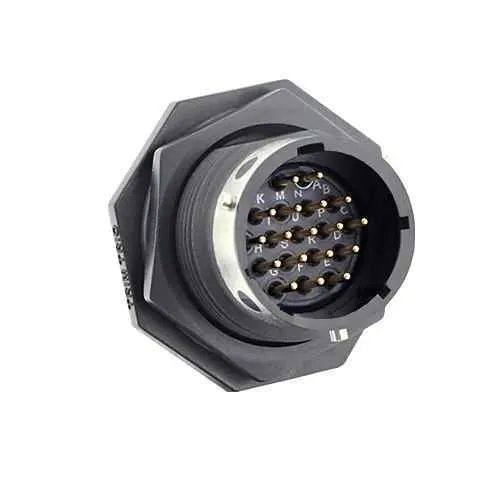

Eaton UTGX714E18P Receptacle - IP68/69K Ruggedized Connector
Part Number: UTGX714E18P
Quick Summary
Eaton UTGX714E18P is a ruggedized receptacle connector for harsh environments in industrial automation. Engineers often struggle with sealing, durability, and ease of installation in confined enclosures. It features IP68/69K sealing, UL94 V0 flammability, and RoHS/REACH compliance, ensuring reliability in wet, dusty, and extreme-temperature conditions. Jam-nut mounting with 18 male solder cups simplifies field assembly in tight spaces, without requiring a backshell. The UTGX series also supports scalable deployments across automation, machinery, and harsh-environment applications, with a compact footprint that suits crowded control panels and rugged equipment alike.
Product Information
Extended Description
UTGX714E18P Eaton: Jam nut receptacle, without backshell, with 18 male solder contacts, IP68/69K in unmated conditions; UTGX714E18P
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E18P
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Sealed for harsh environments, the UTGX714E18P provides IP68/69K protection in unmated condition with a rugged metal and plastic shell. This reduces ingress risk in washdown areas and outdoor enclosures, cutting corrosion-related downtime. With 18 solder-cup contacts in a jam-nut receptacle, termination is quick and vibration-resistant, enabling field servicing without specialized tooling, while the 1/3 Bayonet coupling ensures secure mating under dynamic loads for reliable long-term connections. An operating range from -40 to 105 C and 500-hour salt spray resistance supports equipment exposed to extreme temperatures and corrosive environments, maintaining electrical performance and reducing maintenance frequency. Lifecycle costs improve with up to 500 mating cycles, delivering predictable field service needs and durable performance. UL97 V0-rated plastics, RoHS and REACH compliance simplify safety and regulatory adherence, while no backshell options streamline procurement for compact enclosures. The shell size 14 and E18 layout enable compact yet robust installations across the UTGX family.
