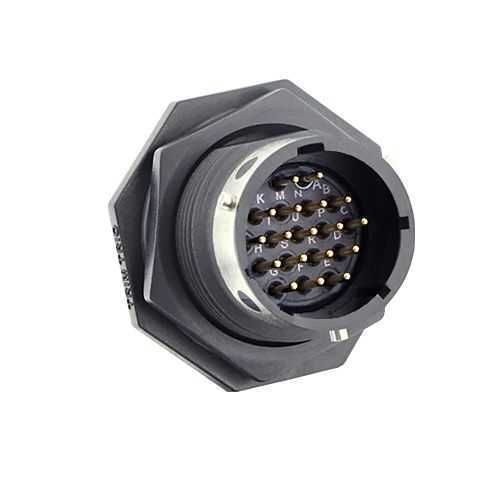

Eaton UTGX714E18PW Receptacle - IP68/69K Ruggedized
Part Number: UTGX714E18PW
Quick Summary
The Eaton UTGX714E18PW ruggedized receptacle connectors are designed for reliable interconnects in harsh industrial environments. In real-world plants, contamination, vibration, and temperature swings threaten uptime and safety, so a sealed, robust solution matters. This connector delivers IP68/IP69K protection in unmated conditions, a jam-nut receptacle with 18 solder cup contacts, and a 1/3 bayonet coupling for quick, repeatable mating. It operates from -40 °C to 105 °C and complies with UL94 V0, RoHS, and REACH requirements. The compact 30.2 mm width, 24.5 mm depth, and 18-contact configuration support tight panel layouts and cost-effective maintenance. Note that there is no backshell option, which simplifies installation in constrained spaces.
Product Information
Extended Description
UTGX714E18PW Eaton: Jam nut receptacle, without backshell, with 18 male solder contacts, IP68/69K in unmated conditions, keying W; UTGX714E18PW
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E18PW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
IP68/IP69K sealing in unmated condition reduces field failure risk and lowers maintenance costs by preventing ingress in extreme environments. In outdoor control cabinets, this protection translates to longer component life and fewer unscheduled shutdowns during washdowns or rain events. 18 solder cup contacts and a jam-nut receptacle design provide robust, soldered connections that resist vibration and thermal cycling, improving signal integrity for sensors and control modules while eliminating loose-wire issues common with crimp-only interfaces. The 1/3 bayonet coupling offers fast, repeatable mating with strong vibration resistance, enabling quicker panel assembly and easier field servicing. The W orientation and compact E18 layout fit tight panel pockets without compromising performance, while -40 to 105 C coverage ensures reliability across diverse plant sites. With 500 mating cycles and a durable metal-plastic shell (shell size 14), the UTGX714E18PW supports long service life and reduced total cost of ownership. Regulatory compliance (UL94 V0, RoHS, REACH) simplifies design-for-compliance goals, and the absence of a backshell option reduces installation complexity and inventory needs for maintenance teams.
Get a Quick Quote for a Eaton UTGX714E18PW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714E18PW?
Enquire Now
FAQs
UTGX714E18PW is a jam-nut receptacle designed for direct mounting without a backshell. Install by threading the jam nut onto the panel, align the W orientation, and mate using the 1/3 bayonet coupling for secure engagement. The contacts are solder cups; prepare conductors with appropriate insulation removal and tin the copper before soldering. After mating, verify IP68/69K sealing remains intact in unmated conditions and test for continuity.
UTGX714E18PW is a 18-contact, 18-cavity jam-nut receptacle with solder cup contacts and 1/3 bayonet coupling. It runs from -40 °C to 105 °C and is rated IP68/69K in unmated conditions. Construction uses metal and plastic with UL94 V0 flammability and RoHS/REACH compliance, supporting up to 500 mating cycles for durable industrial use.
Yes, UTGX714E18PW belongs to the Eaton Souriau UTGX family and shares the E18 layout, shell size 14, and 18-contact arrangement with other UTGX jam-nut receptacles. For reliable pairing, verify the counterpart matches the 1/3 bayonet coupling and W orientation, and confirm the same contact configuration and sealing class across mating components.
Ideal for outdoor automation, heavy machinery, mining equipment, and rail or vehicle systems, the UTGX714E18PW provides reliable interconnections under dust, water spray, and vibration. Its IP68/69K sealing, wide operating temperature range, and 18-pin solder connections support long-life operation, reduced maintenance, and compliance with RoHS and REACH in regulated industrial settings.
Official drawings are available from Eaton at the UTGX series documentation page. The UTGX0002AC.pdf drawing provides detailed dimensions, mounting features, and mating interfaces to ensure correct panel design and fit within your enclosure.
