Eaton UTGX714E18PX Receptacle - IP68/69K Rugged
Part Number: UTGX714E18PX
Quick Summary
Eaton Souriau UTGX series ruggedized connectors deliver robust, high-reliability connections for harsh industrial environments. In the field, loose or damaged connectors can halt production and drive maintenance costs. These assemblies offer IP68/69K sealing in unmated conditions and RoHS/REACH compliance, with UL94 V0 flammability for safe, compliant operation. The UTGX714E18PX features 18 solder contacts and a jam nut receptacle with keying X, addressing both space constraints and vibration challenges. With a compact footprint and rugged materials, they reduce downtime, simplify wiring, and improve long-term reliability across outdoor machinery, mining equipment, and other demanding applications. Secondary benefits include compatibility with standard UTGX mating partners and predictable lifecycle performance for procurement planning.
Product Information
Extended Description

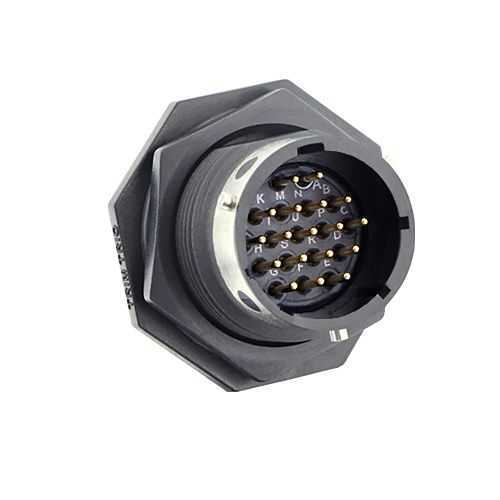

UTGX714E18PX Eaton: Jam nut receptacle, without backshell, with 18 male solder contacts, IP68/69K in unmated conditions, keying X; UTGX714E18PX
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E18PX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
16 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Pin (Male)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature → Business Impact → Application: The UTGX714E18PX uses 18 solder cup contacts in a jam nut receptacle, delivering a high contact density that simplifies harness design while maintaining reliable, vibration-resistant connections; this translates to faster assembly and lower field rework in constrained spaces. Application: ideal for compact control panels and rugged machinery where space is at a premium. Feature → Business Impact → Application: IP68/69K sealing in unmated conditions provides superior environmental protection against dust, water immersion, and cleaning processes; the result is extended service life and reduced maintenance costs in harsh outdoor environments. Application: outdoor equipment, mining vehicles, and offshore machinery benefit from reduced ingress risk and longer intervals between seal checks. Feature → Business Impact → Application: 1/3 Bayonet coupling enables quick, secure mate-and-unmate cycles, improving installation speed on production lines and service calls. Application: field service and equipment retrofits where rapid connector engagement matters. Feature → Business Impact → Application: Salt spray resistance (500 hours) and operating temp range from -40 °C to 105 °C expand usable environments, reducing the need for multiple part variants. Application: equipment operating in extreme climates or near coastal environments. Feature → Business Impact → Application: No backshell option simplifies small-form-factor designs and lowers housing costs, while loaded contacts ensure readiness out of the box. Application: compact, ready-to-wire harnesses in space-constrained control cabinets. Feature → Business Impact → Application: 500 mating cycles indicate durability and predictable lifecycle performance, supporting maintenance planning and total cost of ownership reductions. Application: heavy machinery and conveyors with frequent connect/disconnect requirements. Insight: UTGX makes rugged, compliant connectivity easier to source and specify in projects requiring reliable performance over long service lives.
