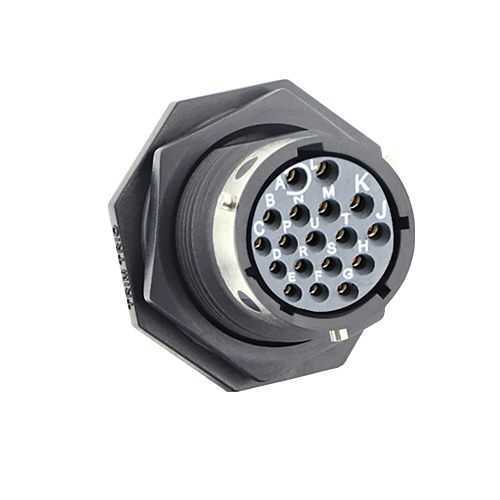

Eaton UTGX714E18S Receptacle - IP68/69K Ruggedized Connector
Part Number: UTGX714E18S
Quick Summary
Eaton UTGX714E18S ruggedized receptacle delivers reliable 18-contact connectivity for harsh industrial environments. This solution addresses mounting constraints where a backshell is not feasible, offering a compact jam-nut interface that seals effectively. The UTGX series achieves IP68/69K sealing in unmated conditions and is rated for operating temperatures from -40 °C to 105 °C, ensuring performance in extreme environments. With REACH, UL94 V0 flammability, and RoHS compliance, it aligns with global safety and environmental standards. Designed for high-vibration contexts and up to 500 mating cycles, it supports long-term installations with predictable lifecycle costs. Leveraging the 1/3 bayonet coupling and E18 shell layout, engineers gain straightforward assembly, serviceability, and robust reliability for heavy industry applications.
Product Information
Extended Description
UTGX714E18S Eaton: Jam nut receptacle, without backshell, with 18 female solder contacts, IP68/69K in unmated conditions; UTGX714E18S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E18S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
18 contact circuit design enables high-density wiring within a single receptacle. This translates to fewer connections, lower panel height, and simplified harness management, reducing installation time and error rates. Ideal for rugged automation equipment, hydraulic manifolds, or machine tool interfaces where 18 circuits are required in a compact footprint. IP68/69K sealing in unmated conditions provides superior protection against dust and washdown exposure, reducing field failures and service calls in outdoor machinery, food processing lines, and washdown-ready production zones. The 1/3 Bayonet coupling delivers quick, tactile mating with reliable retention, cutting cycle times during assembly and maintenance while withstanding high-vibration and shock environments. Jam Nut receptacle mounting simplifies panel integration without a backshell requirement, enabling compact installations and secure sealing in retrofit projects with space constraints. Operating temperature range of -40 °C to 105 °C, coupled with RoHS and UL94 V0 compliance, ensures regulatory alignment and safe operation across global supply chains, while 500 mating cycles support durable, long-service operation for heavy industry applications. Shell material of Metal & Plastic provides strength with manageable weight, and the loaded 18-contact configuration ensures immediate readiness on installation, reducing commissioning time and wiring errors.
