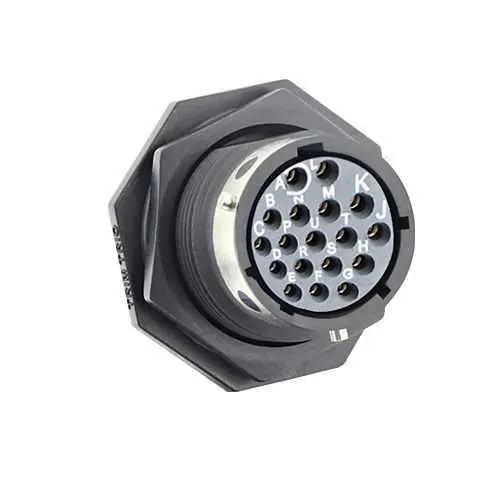

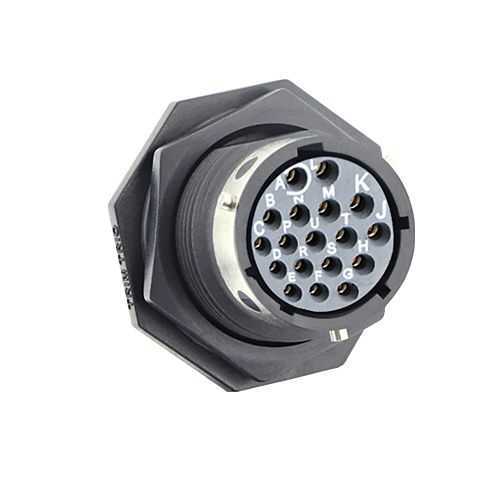

Eaton UTGX714E18SW Receptacle - IP68/69K ruggedized

Feature: 18 female solder cup contacts in a jam nut receptacle configuration enables dense, high-integrity connections in a compact footprint. Business Impact: Improves channel density and signal integrity while reducing assembly time and field maintenance. Application: Robotics, conveyor systems, and harsh-environment panels benefit from reliable multi-pin connectivity and straightforward routing. Feature: 1/3 bayonet coupling with W orientation provides quick, repeatable mating and secure retention. Business Impact: Minimizes downtime during field servicing and reduces torque sensitivity during assembly. Application: Mobile equipment and outdoor installations where rapid coupling is advantageous. Feature: IP68/69K sealing in unmated conditions protects against dust and water ingress. Business Impact: Extends service life in wash-down environments and extreme climates, lowering failure rates. Application: Food processing, mining, and outdoor automation. Feature: Operating temperature from -40 °C to 105 °C expands usable environments. Business Impact: Enables continuous operation across seasonal shifts and high-temperature equipment. Application: Automotive, rail, and heavy industry automation. Feature: 500 mating cycles and UL94 V0/ RoHS/REACH compliance reduce lifecycle risk and ensure regulatory alignment. Business Impact: Lower maintenance costs and improved supplier qualification. Application: Aerospace-adjacent, heavy machinery, and compliant industrial installations. Feature: No backshell option simplifies installation and reduces size and cost while preserving sealing performance. Business Impact: Fewer parts, lighter assemblies, and faster field deployment. Application: Compact control panels and space-constrained equipment; favorable total cost of ownership.
