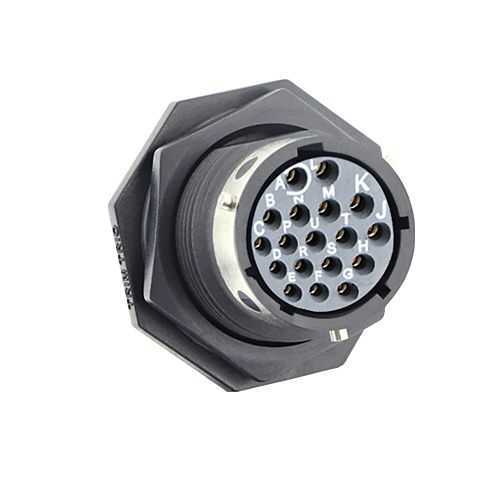

Eaton UTGX714E18SX Receptacle - IP68/69K ruggedized
Part Number: UTGX714E18SX
Quick Summary
Eaton UTGX714E18SX Receptacle is a rugged 18-contact connector for harsh industrial environments. This solution helps prevent field failures in vibration-heavy machinery and moisture-prone operations. The product meets RoHS and REACH, with UL94 V0 flammability and IP68/69K sealing in unmated conditions, ensuring compliance and reliability. By combining robust performance with fast, secure mating, it supports modular automation, simplifying maintenance and reducing lifecycle costs for OEMs and integrators.
Product Information
Extended Description
UTGX714E18SX Eaton: Jam nut receptacle, without backshell, with 18 female solder contacts, IP68/69K in unmated conditions, keying X; UTGX714E18SX
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E18SX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
IP68/69K sealing in unmated conditions protects against water and dust ingress in outdoor and wet environments, increasing uptime and reducing field service needs. The jam-nut receptacle design with 18 solder cup contacts streamlines assembly while delivering dependable, vibration-resistant electrical connections, lowering rework and warranty costs in panel installations. The 1/3 bayonet coupling enables quick make-and-break operations, improving line changeover times and operator efficiency on automation cells and packaging lines. With 500 mating cycles, this connector offers durable lifecycle performance for robotics and factory-floor equipment, supporting predictive maintenance programs. Operating from -40 °C to 105 °C, the UTGX714E18SX handles extreme temperatures in mining, heavy industry, and outdoor machinery, reducing the risk of performance degradation. The shell combines metal and plastic for a balanced mix of strength and weight, while the RoHS REACH compliance and UL94 V0 rating address regulatory and safety requirements. Overall, its compact 24.5 mm length, 30.2 mm width, and 17 g weight support sleek, space-efficient installations with reliable electrical performance across demanding environments.
Get a Quick Quote for a Eaton UTGX714E18SX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714E18SX?
Enquire Now
FAQs
Installation begins with selecting the jam-nut receptacle mating with the appropriate panel cutout. Align the connector orientation to X, tighten the jam nut securely to ensure sealing and preload, then solder the 18 contacts into the mating harness. The absence of a backshell simplifies space-constrained panels, while the 1/3 bayonet coupling provides secure retention during vibration. Verify IP68/69K integrity after assembly and perform a functional test at operating temperature ranges to confirm reliability.
This receptacle offers IP68/69K sealing in unmated conditions, RoHS and REACH compliance, and UL94 V0 flammability, all essential for harsh environments. With 18 solder cup contacts and a robust jam-nut design, it maintains reliable connections under vibration. The operating range of -40 °C to 105 °C supports outdoor, mining, and factory floor applications, while a compact 24.5 mm length keeps installation area minimal and error-free.
Yes. The UTGX714E18SX uses a 1/3 bayonet coupling for quick, secure mating, while its 18 solder cup contacts provide solid, soldered connections for each circuit. This combination reduces wiring time and enhances mechanical retention in high-vibration equipment. It’s well-suited for panel-mounted assemblies in robotics, packaging lines, and industrial automation where rapid servicing matters.
Best-fit applications include robotics cells, automated packaging lines, and outdoor/equipment enclosures exposed to dust, moisture, or temperature extremes. The jam-nut receptacle with solder contacts supports compact, high-density I/O in control panels, while the IP68/69K rating and 500 mating cycles ensure longevity and predictable maintenance scheduling in continuous operation environments.
Plan for regular inspection of sealing integrity and solder junctions during routine maintenance. The connector supports up to 500 mating cycles, so schedule connector mate/unmate cycles accordingly to minimize wear. Ensure RoHS/REACH compliance remains intact during servicing, and confirm operating temperatures stay within the -40 °C to 105 °C range. Keep a spare family of UTGX series connectors for quick swaps.
