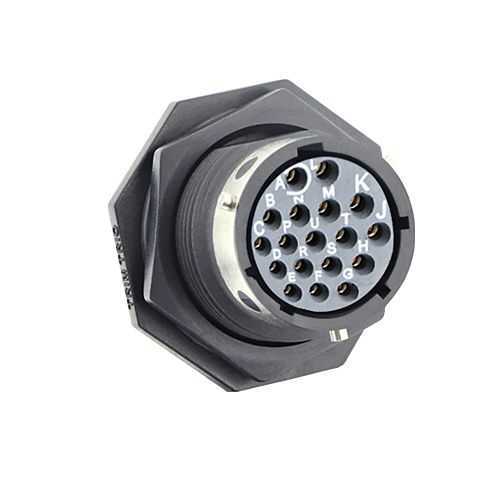

Eaton UTGX714E18SZ Jam Nut Receptacle - IP68/69K
Part Number: UTGX714E18SZ
Quick Summary
Eaton UTGX714E18SZ jam nut receptacle connectors for harsh environments enable reliable electrical connections in demanding equipment. End users face moisture ingress, vibration, and harsh contamination that disrupt operation; these connectors seal IP68/69K in unmated conditions and offer robust 1/3 bayonet mating for quick field service. They also meet UL94 V0 flame resistance and are REACH and RoHS compliant to support global deployments. For engineering teams, that translates into shorter maintenance windows, higher uptime, and predictable performance in rugged automation applications. The jam nut design, with no backshell option, simplifies mounting in tight spaces while 18 solder cup contacts ensure solid signal integrity across demanding duty cycles.
Product Information
Extended Description
UTGX714E18SZ Eaton: Jam nut receptacle, without backshell, with 18 female solder contacts, IP68/69K in unmated conditions, keying Z; UTGX714E18SZ
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E18SZ
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E18
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
18
Number of cavity #20
18
Salt spray
500 hour
Feature IP68/69K sealing provides superior ingress protection, dramatically reducing downtime in washdown environments. Benefit reduces field failures and maintenance costs, enabling higher equipment availability in mining, construction, and offshore applications. Application used in rugged industrial automation and mobile machinery where moisture and dust are constant challenges. Feature 1/3 bayonet coupling delivers fast, repeatable mating even in confined spaces. Benefit minimizes installation time and human error on production lines, improving overall line efficiency. Application suitable for demanding environments such as heavy equipment, wind turbines, and material handling systems. Feature 18 solder cup contacts loaded in the receptacle ensure reliable signal transmission with robust electrical performance. Benefit supports stable control signals and sensor data integrity across 500 mating cycles, extending service life in harsh settings. Application fits compact layouts with shell size 14 and metal & plastic construction for balanced strength and weight. Feature -40 °C to 105 °C operating range and UL94 V0, REACH, RoHS compliance provide temperature resilience and regulatory alignment. Benefit ensures performance in extreme temperatures and global supply chains. Application ideal for standardized UTGX family installations, supporting faster sourcing and compatible accessories like keyed Z orientation. Feature Weight around 17 g and no backshell option reduces weight and simplifies component clearance. Benefit lowers mounting complexity and total installed cost on conveyors, cranes, and mobile equipment.
