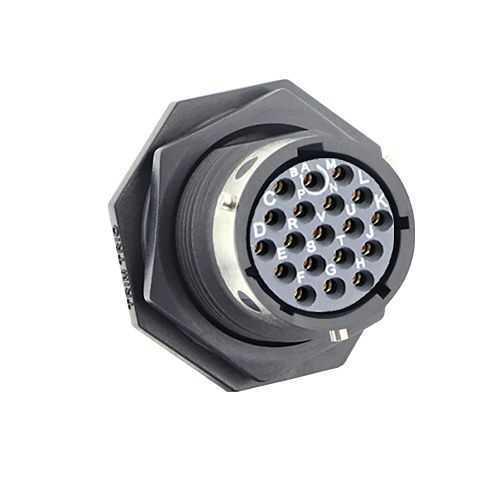

Eaton UTGX714E19SW Receptacle - IP68/69K Rugged
Part Number: UTGX714E19SW
Quick Summary
The Eaton UTGX714E19SW rugged receptacle delivers reliable power and signal transfer for heavy machinery and automation panels. In harsh industrial settings, customers struggle with moisture, dust, vibration, and space constraints that can lead to degraded connections and downtime. This design leverages IP68/69K sealing in unmated conditions, UL94 V0 flammability, and RoHS/REACH compliance to meet stringent safety and environmental standards. Its compact footprint, robust durability, and clear orientation keying reduce field failures while simplifying installation and maintenance, making it a smart choice for robotics, mobile equipment, and process automation projects.
Product Information
Extended Description
UTGX714E19SW Eaton: Jam nut receptacle, without backshell, with 19 female solder contacts, IP68/69K in unmated conditions, keying W; UTGX714E19SW
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E19SW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K sealing in unmated conditions provides superior ingress protection. Business Impact: minimizes water, dust, and moisture ingress, reducing field failures and maintenance costs. Application: suitable for outdoor enclosures, marine equipment, and dusty industrial environments. Feature: 19 solder cup contacts in a jam nut receptacle with no backshell reduces weight and harness complexity. Business Impact: enables a compact, high-density connection that simplifies wiring and lowers overall system mass. Application: control panels and power distribution blocks in tight spaces. Feature: 1/3 Bayonet coupling with W keying offers fast, secure mating and correct orientation. Business Impact: expedites assembly, lowers misconnection risk, and improves installation efficiency. Application: assembly lines, mobile machinery, and rugged robots. Feature: operating temperature range -40 °C to 105 °C and shell made of Metal & Plastic stands up to extreme conditions. Business Impact: expands usable environments and extends service life, reducing downtime. Application: outdoors, automotive, and industrial automation in harsh climates. Feature: 500 mating cycles and salt spray resistance (500 hours) ensure long-term reliability. Business Impact: lowers replacement frequency and maintenance costs while delivering predictable performance. Application: heavy equipment, mining, and off-road applications. Feature: UL94 V0, RoHS, and REACH compliance guarantee fire safety and regulatory alignment. Business Impact: simplifies certification processes and supplier audits. Application: aerospace-adjacent, process plants, and equipment requiring strict compliance.
Get a Quick Quote for a Eaton UTGX714E19SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714E19SW?
Enquire Now
FAQs
When installing the UTGX714E19SW, use the jam nut receptacle to secure the connector without a backshell, ensuring correct orientation with the W keying. Plan for the 24.5 mm depth and 30.2 mm width/height, and verify the 19 solder cup contacts are correctly seated. The absence of a backshell simplifies routing but requires careful harness management to protect solder joints from stress.
This receptacle features 19 solder cup contacts in a 14-shell size, with a 1/3 Bayonet coupling rated for up to 500 mating cycles. It operates from -40 °C to 105 °C and carries IP68/69K sealing in unmated conditions. It is built from a metal and plastic shell, UL94 V0 flame rated, and RoHS/REACH compliant, supporting robust, long-life connectivity.
Yes. The IP68/69K sealing in unmated conditions protects against water and dust, while the wide temperature range and salt spray tolerance support harsh environments typical in rail, marine, and outdoor industrial deployments. The jam nut design and welded construction enhance vibration resistance, reducing the risk of connection failure in mobile equipment.
The UTGX714E19SW carries UL94 V0 flammability rating and complies with RoHS and REACH directives. It also achieves IP68/69K protection for unmated conditions, ensuring reliability in harsh environments. While it isn’t specified to be SIL or CE in the data provided, its certifications align with common industrial safety and environmental standards.
The connector’s 500 mating cycles, high ingress protection, and durable sealing translate to lower maintenance frequency and reduced downtime. Its compact form and lack of backshell simplify installation and harness routing, potentially lowering assembly time and total cost of ownership in demanding automation projects.
