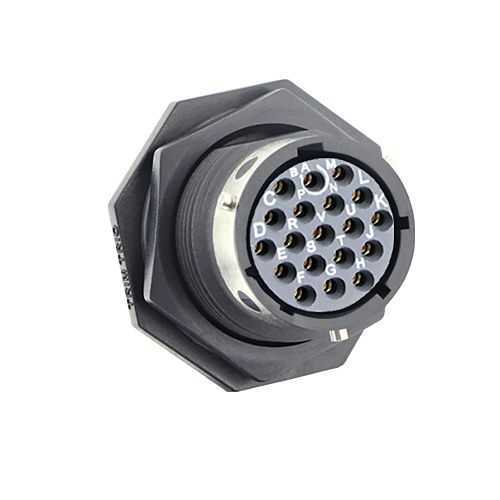

Eaton UTGX714E19SX Receptacle - Rugged IP68/69K
Part Number: UTGX714E19SX
Quick Summary
Engineered for harsh environments, the Eaton UTGX714E19SX is a rugged receptacle designed to endure vibration, moisture, and temperature extremes in industrial automation and mobile equipment. Too often, field wiring failures, water intrusion, and incompatible backshells create downtime—this connector addresses those pain points with robust sealing and a straightforward jam-nut install. IP68/69K sealing in unmated conditions, UL94 V0 flammability rating, and RoHS/REACH compliance ensure safety and regulatory readiness for global deployments. With 19 solder cup contacts, a 1/3 bayonet coupling, and a compact 24.5 mm length, it delivers quick, reliable assembly and high mating cycles for harsh-duty applications. Choosing the UTGX series from Eaton supports standardization of rugged interfaces across industrial machinery, enabling easier sourcing and improved total cost of ownership.
Product Information
Extended Description
UTGX714E19SX Eaton: Jam nut receptacle, without backshell, with 19 female solder contacts, IP68/69K in unmated conditions, keying X; UTGX714E19SX
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E19SX
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Connector accessory option
No backshell possibility
Connector orientation
X
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: IP68/69K sealing in unmated conditions. Business Impact: Provides superior protection against water, dust, and contaminants during operation and washdowns, reducing field failures and warranty costs. Application: Outdoor control panels, mobile equipment, and mining machines where exposure to harsh environments is routine. Feature: 19 solder cup contacts delivered loaded. Business Impact: Accelerates wiring, minimizes field assembly time, and improves electrical reliability under vibration. Application: Heavy machinery, conveyors, and robotics where secure, repeatable solder connections are essential. Feature: 1/3 Bayonet coupling with jam nut receptacle and no backshell option. Business Impact: Enables fast, rugged mating and a compact footprint with fewer accessory parts to manage in tight spaces. Application: On-board connectors in rugged vehicles and industrial cabinets where space is at a premium. Feature: Wide operating temperature range and robust shell. Business Impact: Maintains mechanical integrity and electrical performance from -40 °C to 105 °C, supporting high-temperature environments and cold starts. Application: Process plants, outdoor equipment, and heavy-duty automation. Feature: Salt spray resistance and regulatory compliance. Business Impact: Improves longevity and reductions in maintenance cycles due to corrosion protection and RoHS/REACH adherence. Application: Food, chemical, and outdoor installations where exposure to corrosion or restricted substances is a concern.
