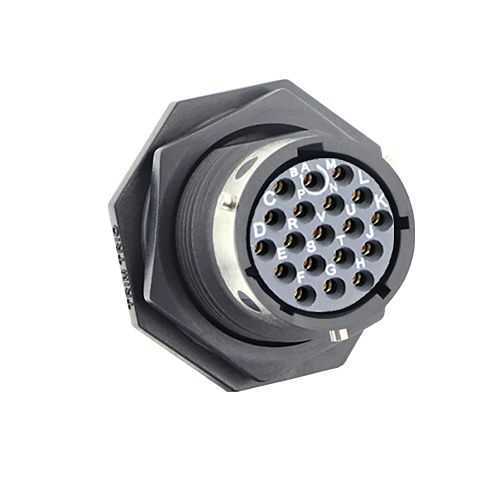

Eaton UTGX714E19SY Receptacle Connector - IP68/69K
Part Number: UTGX714E19SY
Quick Summary
Eaton UTGX714E19SY is a ruggedized receptacle connector designed for harsh industrial environments and demanding automation applications. This model addresses common field challenges like vibration, moisture ingress, and electrical noise by combining a robust metal and plastic shell with reliable solder cup contacts. Users often struggle with secure mounting, alignment, and long-term durability in extreme conditions; UTGX714E19SY mitigates these issues with a jam-nut receptacle, 1/3 bayonet coupling, and precise Y-keying for consistent mating. With IP68/69K sealing in unmated conditions and a UL94 V0 rating, it supports stringent safety and regulatory requirements. In high-volume manufacturing or offshore projects, this connector translates to reduced downtime, easier installation, and predictable performance at scale.
Product Information
Extended Description
UTGX714E19SY Eaton: Jam nut receptacle, without backshell, with 19 female solder contacts, IP68/69K in unmated conditions, keying Y; UTGX714E19SY
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E19SY
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
17 g
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Connector accessory option
No backshell possibility
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E19
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
19
Number of cavity #20
19
Salt spray
500 hour
Feature: 19 solder cup contacts Provision of ready-to-wire connections reduces field labor and wiring errors; Business Impact: speeds assembly, lowers installation cost; Application: panel-mounted equipment in manufacturing lines. Feature: Jam nut receptacle with 1/3 bayonet coupling Fast, secure mating with vibration resistance; Business Impact: minimizes connector loosening under equipment vibration; Application: heavy machinery, conveyors, and mining gear. Feature: IP68/69K sealing in unmated conditions Ensures ingress protection in wet or dusty environments; Business Impact: extends service life and reduces field failures; Application: outdoor substations, offshore rigs, and wet processing plants. Feature: Operating range -40 to 105 °C Wide operating temperature enables reliable performance across environments; Business Impact: reduces the need for multiple part numbers; Application: automotive, rail, and food processing equipment. Feature: Loaded 19-contact configuration with Solder Cup contacts Eliminates additional assembly steps and improves consistency; Business Impact: lowers labor costs and increases repeatability; Application: control panels and instrument clusters. Feature: 500 mating cycles Durable contact interface supports long-term reliability; Business Impact: lowers total cost of ownership through reduced replacement cycles; Application: high-cycle automation and equipment that requires frequent maintenance. Feature: Shell material of Metal & Plastic Robust construction with weight efficiency; Business Impact: improved EMI shielding and easier installation in tight spaces; Application: rugged control enclosures and portable equipment. Feature: No backshell option Simplifies sourcing for compact assemblies where backshell protection is not required; Business Impact: reduces BOM complexity and lead times; Application: compact automation modules. Feature: Salt spray 500 hour Corrosion resistance enhances field longevity; Business Impact: minimizes corrosion-related failures in harsh environments; Application: marine, chemical processing, and mining.
