Eaton UTGX714E5S Receptacle - IP68/69K Rugged
Part Number: UTGX714E5S
Quick Summary
Eaton UTGX714E5S ruggedized receptacle connectors enable reliable, high‑demand power connections in harsh industrial environments. Engineers often grapple with ingress, moisture, and costly field repairs when backshells are unavailable or misaligned. This design delivers IP68/69K performance in unmated conditions and includes UL94 V0 flame rating, RoHS and REACH compliance for safer, longer-lasting installations. With a jam nut receptacle and 5 solder cup contacts, the solution simplifies assembly while driving lower lifecycle costs. For OEMs and end users alike, it translates to less downtime, faster maintenance, and predictable performance across demanding applications.
Product Information
Extended Description

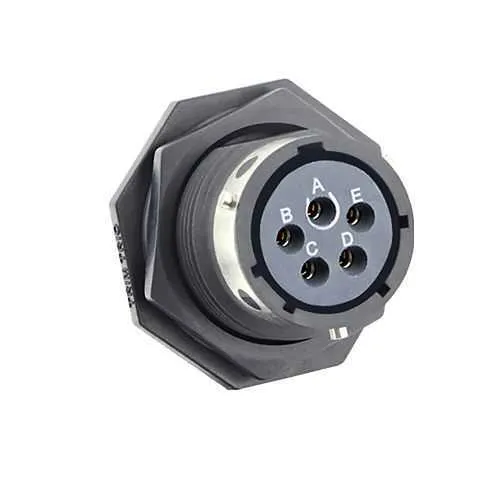

UTGX714E5S Eaton: Jam nut receptacle, without backshell, with 5 female solder contacts, IP68/69K in unmated conditions; UTGX714E5S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E5S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature → Business Impact → Application: IP68/69K sealing protects against dust, water, and contaminants, reducing unscheduled downtime and warranty costs in outdoor or washdown environments; ideal for rugged machinery, mining equipment, and outdoor automation where ingress is a constant risk. Feature → Business Impact → Application: 1/3 bayonet coupling paired with a jam nut receptacle supports quick field assembly and secure retention, cutting installation time and minimizing field rework in tight panels or restricted spaces. Feature → Business Impact → Application: Five solder cup contacts provide robust, vibration-resistant connections with repeatable solder joints, improving electrical reliability in mobile and high-vibration systems such as conveyors and robotic arms. Feature → Business Impact → Application: 500 mating cycles and a metal/plastic shell deliver durable longevity in harsh conditions, supporting lower replacement costs and extended service intervals for heavy equipment. Feature → Business Impact → Application: Operating temperature range from -40 °C to 105 °C and UL94 V0 flammability rating help maintain performance in extreme industrial settings while meeting safety standards. Feature → Business Impact → Application: No backshell option reduces parts count and simplify logistics, offering a leaner integration path for compact control panels and tight installations. Feature → Business Impact → Application: RoHS and REACH compliance mitigate regulatory risk and support sustainable design practices across global deployments.
Get a Quick Quote for a Eaton UTGX714E5S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTGX714E5S?
Enquire Now
FAQs
UTGX714E5S is a jam-nut receptacle designed for direct panel mounting without a backshell. It pairs with the UTGX series accessories where permitted, enabling compact, seal-focused installations. For panels requiring additional protection, evaluate enclosure integration and mating clearance to ensure reliable sealing and cable management during service and maintenance.
This receptacle provides 5 solder cup contacts in a 5-way arrangement, with a mating cycle rating of 500 cycles and a specified operating temperature range of -40 °C to 105 °C. The IP68/69K sealing in unmated conditions supports dependable performance in dirty or wet environments, reducing rework and fault risk in rugged deployments.
Yes. UTGX714E5S is certified for IP68/69K in unmated conditions, ensuring protection against immersion and high-pressure water jets. This makes it well-suited for outdoor installations, washdown areas, and equipment exposed to dust and moisture where reliability is critical.
The 1/3 bayonet coupling, jam nut receptacle design, and 5 solder cups collectively simplify field assembly, cut installation time, and improve solder joint integrity under vibration. The compact 24.5 mm length and 30.2 mm width/height help fit tight control panels and mobile equipment without compromising seal or electrical performance.
UTGX714E5S carries UL94 V0 flammability rating and RoHS/REACH compliance, aligning with safety and environmental requirements for global deployment. These certifications support regulatory acceptance, sustainable design practices, and easier market approval across diverse industries such as automotive, industrial automation, and machinery.
