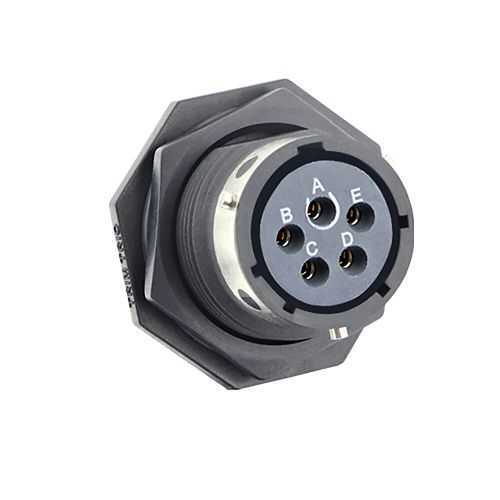

Eaton UTGX714E5SW Receptacle - Ruggedized IP68/69K
Part Number: UTGX714E5SW
Quick Summary
Eaton UTGX714E5SW Receptacle is a ruggedized connector for harsh-environment automation. In demanding OEM and field installations, moisture, vibration, and contamination threaten reliability. It carries RoHS and REACH compliance, UL94 V0 flammability, and IP68/69K protection in unmated conditions, offering built-in resilience. The jam nut receptacle format with 5 solder cup contacts and a 1/3 bayonet coupling provides secure mating in tight spaces and fast field servicing. Designed for the UTGX Souriau series ecosystem, this connector supports up to 500 mating cycles and operates from -40 °C to 105 °C, delivering durable, cost-effective connectivity for industrial machinery and outdoor equipment.
Product Information
Extended Description
UTGX714E5SW Eaton: Jam nut receptacle, without backshell, with 5 female solder contacts, IP68/69K in unmated conditions, keying W; UTGX714E5SW
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E5SW
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
W
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E5
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Salt spray
500 hour
Feature: Jam Nut Receptacle with 5 solder cup contacts and 1/3 bayonet coupling. Business Impact: Enables fast, secure panel mounting and reliable mating in vibration-prone environments, reducing field-service time. Application: Suitable for automation panels, conveyors, and outdoor equipment where quick maintenance and robust contact integrity are required. Feature: IP68/69K ingress protection with a rugged metal/plastic shell. Business Impact: Keeps moisture and dust out in harsh environments, reducing failures and warranty costs. Application: Outdoor machinery, washdown zones, and hydraulic systems where environmental sealing is essential. Feature: Operating temperature range -40 to 105 °C, 500 mating cycles, salt spray 500 hours, RoHS/REACH, UL94 V0. Business Impact: Delivers dependable performance under extreme temperatures and repeated mating, while meeting compliance, decreasing risk. Application: Heavy equipment subject to wide temp swings, dust, and corrosion in industrial settings. Feature: Compact form factor (Shell size 14; 24.5 mm length; 30.2 mm width/height) and weight 18 g; W orientation. Business Impact: Enables tight panel layouts and easier harness routing, reducing weight and space in control cabinets. Application: Small- to mid-size automation panels and portable devices. Feature: Ecosystem compatibility and no backshell option; 5 cavities; Loaded contact delivery. Business Impact: Simplifies harness design and inventory, improves interchangeability within UTGX series, and reduces assembly errors. Application: System installations leveraging UTGX ecosystem components for streamlined maintenance.
