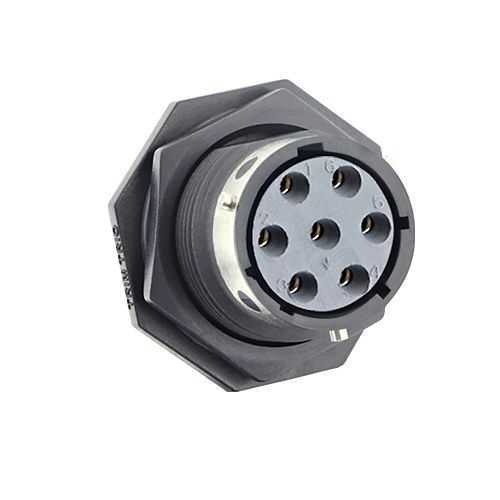

Eaton UTGX714E7S Receptacle - IP68/69K Ruggedized
Part Number: UTGX714E7S
Quick Summary
Eaton UTGX714E7S ruggedized receptacle is a high-reliability connector designed for harsh environments in automation and heavy machinery. In rugged field conditions, standard connectors can fail, causing downtime and costly repairs. This UTGX variant meets RoHS and REACH compliance, carries UL94 V0 flammability ratings, and seals at IP68/69K in unmated conditions, offering longevity and safety. Its jam-nut receptacle design with 7 solder contacts and a 1/3 bayonet coupling enables quick, secure field installation, while no backshell option reduces weight and part count. Compatible with the UTGX E7 layout, it streamlines supply chains and supports proactive maintenance for rugged automation systems.
Product Information
Extended Description
UTGX714E7S Eaton: Jam nut receptacle, without backshell, with 7 female solder contacts, IP68/69K in unmated conditions; UTGX714E7S
Product Name
Eaton Souriau UTGX series ruggedized connectors for harsh environments
Catalog Number
UTGX714E7S
Product Length/Depth
24.5 mm
Product Height
30.2 mm
Product Width
30.2 mm
Product Weight
18 g
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Connector accessory option
No backshell possibility
Connector orientation
N
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Solder Cup
Coupling type
1/3 Bayonet
Layout
E7
Shell material
Metal & Plastic
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
7
Number of cavity #12
0
Number of cavity #16
7
Salt spray
500 hour
Feature: IP68/69K sealing and jam-nut receptacle design. Business impact: Superior ingress protection reduces downtime and maintenance costs in harsh environments. Application: outdoor automation, marine equipment, and rugged conveyors. Feature: 1/3 Bayonet coupling. Business impact: Fast, secure mating saves installation time and minimizes misalignment. Application: panel-mounted controls, mobile machinery, and field-deployed systems. Feature: 7 solder-contact sockets. Business impact: Reliable electrical connections with robust tolerance to vibration; Application: seven-wire sensor and power/data runs in automation cabinets. Feature: Operating range -40 °C to 105 °C. Business impact: Uninterrupted performance across extreme climates; Application: outdoor industrial enclosures and offshore equipment. Feature: RoHS/REACH and UL94 V0 compliance. Business impact: Regulatory and fire-safety assurance; Application: regulated environments and high-reliability deployments.
