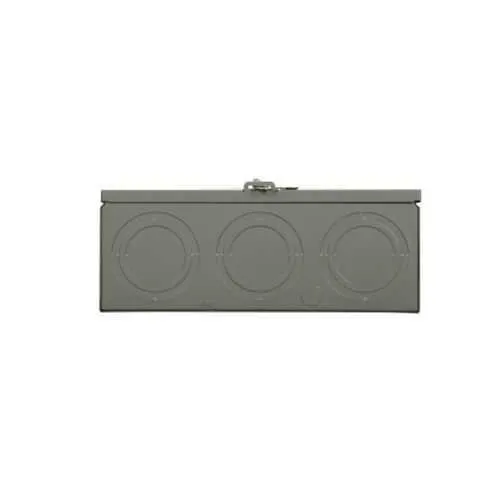

Eaton UTH4213TCH Meter Socket - 600V UL Listed
Part Number: UTH4213TCH
Quick Summary
Eaton UTH4213TCH meter socket delivers reliable service connections for single-phase residential or light commercial feeds. Common challenges like complex conduit routing, extended installation times, and uncertain utility approvals are minimized by a compact, field-ready design that simplifies connections. It carries UL Listed certification and is supported by utility approvals in IA, WI, NY, ME, and KY, helping projects pass code checks and regulatory reviews on the first pass. With a 200A rating, 600V operation, top/bottom feed, four-jaw ringless configuration, and lever bypass, the unit delivers predictable performance and straightforward maintenance. Embedded compatibility with #6-350 kcmil feeders and a robust grounding connection translates to reduced rework and lower total installed cost, delivering clear business value.
Product Information
Extended Description
UTH4213TCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, Large hub open, #6-350 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH4213TCH
UPC
782116109432
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
IA : Alliant (IP&L and WP&L) WI : Alliant (IP&L and WP&L) NY : Central Hudson Gas & Electric (CHG&E) ME : Central Maine Power KY : Louisville Gas & Electric/Kentucky Utilities
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
Large hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH4213TCH
Feature 200A, 600V rating, single-phase, four-jaw meter socket delivers high-capacity service with reliable connections; Business Impact reduces wiring failures and service interruptions; Application residential and light commercial metering. Feature Top/bottom feed and lever bypass enable flexible installation and quick restoration during maintenance, reducing downtime and on-site labor costs; Application field service and retrofit projects. Feature Ringless, large hub opening and compatibility with #6-350 kcmil conductors facilitate easy conductor entry, faster wiring, and safer assemblies; Application new builds and upgrades with large feeders. Feature 1-socket, three-wire configuration ensures compliant, neat meter stacks with minimal clearance requirements; Application compact spaces and code-compliant installations. Feature UL Listed certification and regional utility approvals simplify procurement, compliance paperwork, and inspector sign-off; Application across multi-region projects with consistent standards and support.
Get a Quick Quote for a Eaton UTH4213TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH4213TCH?
Enquire Now
FAQs
The UTH4213TCH is a single-phase meter socket rated for 200A, with top/bottom feed, four-jaw ringless design, and a 1-socket layout for #6-350 kcmil conductors, supporting straightforward integration with standard residential panels and meter sleeves.
Key specs include 200A amperage, 600V voltage rating, single-phase, three-wire configuration, four-jaw sockets, ringless security, and lever bypass for quick maintenance, all enabling compliant, reliable metering for residential and light commercial loads.
Yes. The unit carries UL Listed certification and holds utility approvals across IA, WI, NY, ME, and KY, helping align projects with regional requirements from Alliant Energy, CHG&E, CMP, and LG&E/KU.
Lever bypass allows service restoration without disconnecting the load path, enabling faster maintenance or testing while preserving safety and compliance, especially during meter work or panel servicing.
The product is covered by Eaton's standard warranty policy, typically one year from installation or 18 months from shipment, whichever comes first, providing protection against manufacturing defects and supporting long-term ROI.
