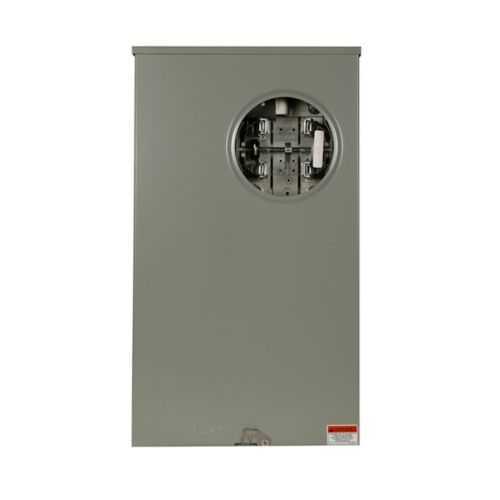

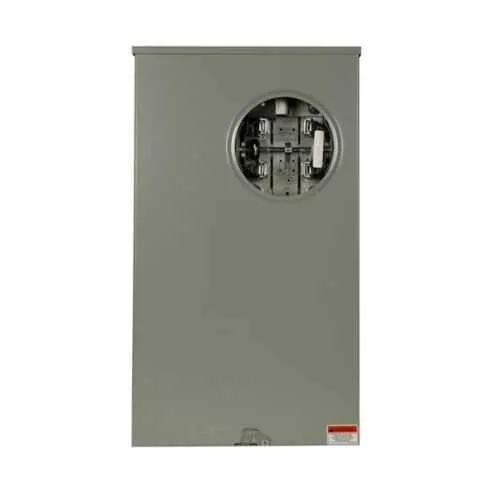

Eaton UTH43209ACH Meter Socket - UL Listed, 600V
Part Number: UTH43209ACH
Quick Summary
The Eaton UTH43209ACH meter socket delivers safe, reliable service connections for single-phase residential and light commercial mains. Installers often wrestle with compatibility, lead times, and field wiring mistakes in high-voltage metering installs, which can derail projects. This unit carries UL Listed safety certification and DP&L utility approval, easing compliance during procurement and commissioning. With a 320A rating, bottom-feed configuration, and a lever bypass, it supports fast installation, robust grounding, and long-term reliability in demanding service entrances. By combining rugged construction with Eaton's warranty and service support, it offers a practical balance of performance, safety, and total cost of ownership for power distribution projects.
Product Information
Extended Description
UTH43209ACH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Under, Solid top, 3/8 inch stud, 4-jaw, 1-ph, (2) #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH43209ACH
UPC
782116128068
Product Length/Depth
5.69 in
Product Height
26 in
Product Width
15 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
OH : Dayton Power and Light (DP&L)
Line
3/8 in stud
Load
Dual #6-350 kcmil
Number of wires
Three-wire
Hub type
Solid top
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH43209ACH
Feature: 320A amperage rating and 600V voltage rating; Business Impact: supports large residential or light commercial service entrances without oversizing or multiple meters; Application: ideal for new builds in urban blocks. The bottom-feed, four-jaw, 3/8 inch stud terminals provide secure, high-integrity connections that reduce field wiring errors and maintenance calls in demanding environments. This design minimizes installation time and enhances reliability by delivering solid contact points and resilient grounding in harsh conditions. Ringless security and a solid-top hub reinforce safety and tamper-resistance, making it suitable for meter installations in public-facing areas or contractor setups. The single-phase, 3-wire configuration simplifies wiring diagrams for modern service entrances while maintaining compatibility with DP&L-approved utility standards. Lever bypass supports service continuity during maintenance, and the 1-socket arrangement streamlines panel planning and spare capacity for future upgrades. Overall mass and dimension—about 21 lb and 5.69 in depth by 26 in height by 15 in width—facilitate planning for interior/exterior placements and service conduit routing.
Get a Quick Quote for a Eaton UTH43209ACH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH43209ACH?
Enquire Now
FAQs
The UTH43209ACH is a single-position meter socket designed for residential and light commercial service with a 320A rating, 600V capability, bottom-feed configuration, and a 3-wire, four-jaw arrangement. It supports standard single-phase service entrances and is UL Listed for safety compliance, simplifying integration with common utility-ready panels and service equipment.
Confirm 320A amperage rating, 600V voltage rating, single-phase operation, three-wire configuration, bottom-feed, four-jaw terminals, and a 1-socket layout. These specs match typical residential and light commercial metering needs and ensure compatibility with DP&L requirements while delivering a reliable, grounded connection with lever bypass for maintenance.
Yes. The meter socket carries UL Listed safety certification, and it has DP&L utility approval, streamlining procurement and field acceptance for projects that require utility-compliant metering equipment. This reduces compliance risk and accelerates commissioning in regulated markets.
The ringless design reduces tampering risk, and the solid-top hub plus bottom-feed configuration support safe, accessible wiring. Lever bypass enables service continuity during maintenance, while the 3/8 inch line studs and four-jaw terminals provide robust, corrosion-resistant connections. Plan for a 26 inch height and 15 inch width to accommodate mounting clearances and conduit routing.
Choosing this Eaton meter socket delivers reliability, compliance, and faster project delivery: UL Listed safety, DP&L approval, 320A 600V capability, and a straightforward bottom-feed, 3-wire configuration reduce field errors and integration time. The lever bypass and secure ringless design lower maintenance costs and security concerns, contributing to lower total cost of ownership over the system lifecycle.
