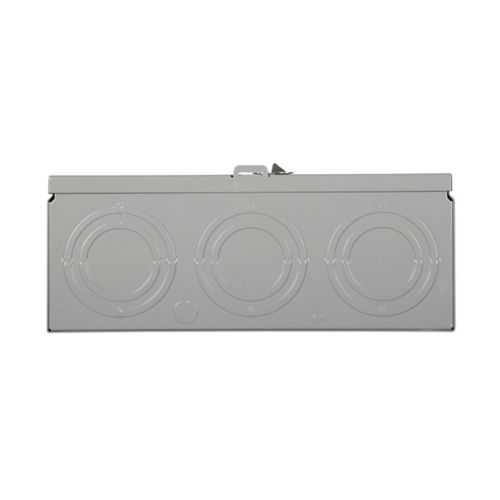

Eaton UTH43369TCH meter socket - 600V rated, UL Listed
Part Number: UTH43369TCH
Quick Summary
Eaton meter socket is a robust 320A single‑position service for commercial or residential installations. In practice, engineers confront delays when equipment mismatches slow a critical connection; this unit offers top/bottom feed, a four‑jaw design, and ringless construction to speed field work. UL Listed certification provides safety compliance and reliable performance in demanding electrical environments. Rated for 600 V and three‑wire systems, it accommodates large feeders (up to #4–600 kcmil on the line and #6–350 kcmil on the load) for scalable service drops. Coupled with a lever bypass and solid ground connectivity, this solution supports easier maintenance, faster service restoration, and a clearer long‑term total cost of ownership for utility metering projects.
Product Information
Extended Description
UTH43369TCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub open, #4-600 kcmil, 4-jaw, 1-ph, (2) #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH43369TCH
UPC
782116127344
Product Length/Depth
5.69 in
Product Height
36.63 in
Product Width
15 in
Product Weight
35 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
TN : Knoxville Utility Board (KUB) TX : Oncor TX : Pedernales Electric Cooperative NM : Public Service Company of New Mexico (PNM)
Line
#4-600 kcmil
Load
(2) #6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Connection
Ground connection
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH43369TCH
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 320A amperage rating. Business impact: Enables high-demand service connections without oversizing equipment, reducing project cost and footprint. Application: Ideal for commercial and large residential meters that require power capacity with room to grow. Feature: 4-jaw, 1-ph, 3-wire design. Business impact: Ensures secure conductor termination and reliable phasing, minimizing nuisance tripping and service interruptions. Application: Suitable for utility metering and service entries demanding precise alignment. Feature: Top/bottom feed with 5x5 hub opening. Business impact: Flexible installation options cut site constraints and labor time. Application: Retrofit projects and new builds in tight spaces or legacy enclosures. Feature: Ringless, ground-connected enclosure with lever bypass. Business impact: Improves maintenance safety and reduces downtime during testing or bypass operations. Application: Field service crews benefit from quicker restores after fuse or meter work. Feature: 600 V rating and 3-wire capability. Business impact: Broad compatibility with building systems and compliant with common electrical codes. Application: Residential and light commercial metering where large feeder conductors are used. Feature: Load and line conductor capacity (#4–600 kcmil line; #6–350 kcmil load). Business impact: Supports substantial service drops while maintaining code compliance and reliability. Application: Heavy-duty service drops for commercial or multi‑unit dwellings. Feature: UL Listed certification. Business impact: Provides safety assurance and code compliance for utility and contractor specifications. Application: Building upgrades and new installations in regulated markets. Feature: Lever bypass for service testing. Business impact: Allows safe, quick isolation or bypass during maintenance without full meter removal. Application: Routine testing and troubleshooting workflows.
Get a Quick Quote for a Eaton UTH43369TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH43369TCH?
Enquire Now
FAQs
This meter socket is designed for 1‑position commercial or residential service with top or bottom feed. Plan for a 5x5 hub opening, space for a four‑jaw termination, and room to access the lever bypass handle. Ensure the enclosure is mounted in compliance with local electrical codes and that conductor runs accommodate #4–600 kcmil line and #6–350 kcmil load. The UL Listed unit aids in meeting safety requirements, simplifying permit processes.
Yes. The UTH43369TCH supports both top and bottom feed, is rated for single‑phase 3‑wire service, and accommodates ringless, four‑jaw terminations. This flexibility is advantageous for retrofit projects and new installations where precise routing or enclosure constraints exist. The 600 V rating further ensures compatibility with typical commercial and residential metering scenarios while maintaining code conformance.
Yes. The UTH43369TCH is specified for line conductors up to #4–600 kcmil and load conductors to #6–350 kcmil, supporting robust service drops and future load growth. Its four‑jaw design provides secure termination, and the 5x5 hub opening helps accommodate large feeders in a compact footprint. This capability is critical for commercial or multi‑unit residential projects with substantial incoming power needs.
The UTH43369TCH carries UL Listed certification, signifying compliance with safety standards for electrical equipment. This certification supports code acceptance in utility metering projects and contractor specifications. While other certifications aren’t listed for this model, UL Listing combined with Eaton’s warranty framework helps ensure reliability and risk mitigation across installation and maintenance cycles.
Eaton’s meter socket carries a one‑year limited warranty from the date of installation, or eighteen months from shipment, whichever occurs first, per policy 25‑000. Support includes access to Eaton’s specification sheets and warranty documentation. For installation teams, this translates to predictable maintenance costs and documented coverage during commissioning and post‑installation support.
