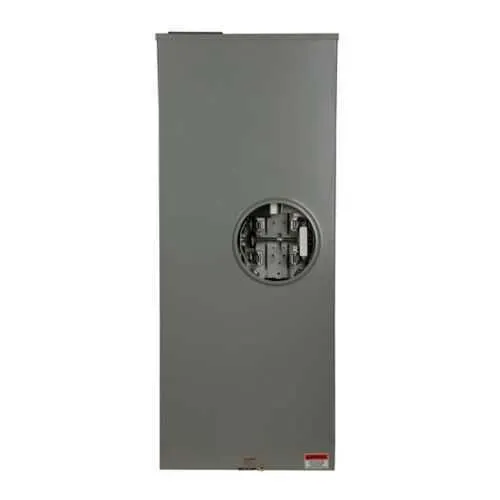

Eaton UTH43369UCH Meter Socket for 320A Service - UL Listed
Part Number: UTH43369UCH
Quick Summary
Eaton UTH43369UCH meter socket delivers reliable service connections for commercial or residential applications up to 320A. The challenge many teams face is selecting a unit that meets rating, wiring, and utility requirements without slowing project schedules. This device carries UL Listed certification, is rated for 600 V, and aligns with Entergy utility approvals (AR: LA, MS, TX), giving you confidence in compliance and grid compatibility. By pairing robust rating with straightforward top or bottom feed and a ringless design, it reduces field errors and accelerates installation, saving time and cost. In practice, contractors and procurement teams gain predictable performance, easier maintenance, and a clear path to code compliance with Eaton meter socket solutions.
Product Information
Extended Description
UTH43369UCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub cover plate, #4-600 kcmil, 4-jaw, 1-ph, dual #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH43369UCH
UPC
782113684086
Product Length/Depth
5.69 in
Product Height
36.63 in
Product Width
15 in
Product Weight
47 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
AR : Entergy LA : Entergy MS : Entergy TX : Entergy
Line
#4-600 kcmil
Load
Dual #6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH43369UCH
Feature: 320A amperage rating and 600V voltage rating → Business Impact: Supports high-capacity service without upsizing downstream equipment, reducing overall system cost and footprint → Application: Best for main service connections in light commercial buildings and large residential developments. Feature: 4-jaw, single-phase configuration → Business Impact: Provides secure, stable conductor engagement and simplified wiring diagrams → Application: Ideal for reliable metering in top/bottom feed installations with minimal field adjustments. Feature: 5 x 5 hub cover plate and ringless security → Business Impact: Improves installation speed and aesthetic, lowers chase rework, and enhances enclosure integrity → Application: Commercial and residential enclosures needing clean, code-compliant meter openings. Feature: Dual load capability (#6-350 kcmil) and line capacity (#4-600 kcmil) → Business Impact: Supports large conductors with fewer splices, reducing installation time and potential interference → Application: Utility-grade feeds and high-demand service entrances. Feature: Lever bypass and grounding options (#14-#2 Cu) → Business Impact: Streamlines service isolation for maintenance and safer ground connections, lowering downtime during upgrades → Application: Maintenance-tight metering setups in mixed-use facilities. Feature: UL Listed and Entergy utility approvals → Business Impact: Enables faster permitting, reduces risk of non-compliance, and supports grid-ready integration → Application: Projects requiring utility coordination and standard-compliant metering hardware.
Get a Quick Quote for a Eaton UTH43369UCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH43369UCH?
Enquire Now
FAQs
The UTH43369UCH is a single-position meter socket designed for 320A service with top or bottom feed, a 5x5 hub cover plate, and four-jaw termination. It fits standard residential and light commercial meter installations, and its lever bypass and grounding options support safe maintenance. When pairing with compatible panels and conductors (#4-600 kcmil lines, dual #6-350 kcmil loads), electricians can achieve compliant, rapid installations with minimal field modification.
Key specs include 320A amperage rating, 600V voltage rating, single-phase operation, four-jaw connection, top/bottom feed, and 3-wire configuration. It accommodates line conductors from #4 to #600 kcmil and load conductors from #6 to #350 kcmil, with a ringless hub plate for secure, clean installation and reliable metering performance.
Yes. The unit is UL Listed and carries Entergy utility approvals (AR: LA, MS, TX), supporting regulatory compliance and utility coordination. This simplifies permitting, reduces installation risk, and provides confidence that the meter socket will meet utility and code requirements for metering installations in applicable jurisdictions.
The design handles high-capacity service with robust four-jaw connections and a ringless, accessible hub plate, reducing field wiring errors and enclosure intrusion. Top/bottom feed flexibility, large conductor compatibility, and a lever bypass option streamline maintenance and upgrades, minimizing downtime and ensuring dependable service during peak demand periods.
The UTH43369UCH consolidates high-capacity performance, UL certification, and utility approvals in a single device, reducing permitting delays and field rework. Its compatibility with large feeders and secure, efficient wiring translates to faster installations, lower labor costs, improved reliability, and a longer service life with simplified future upgrades.
