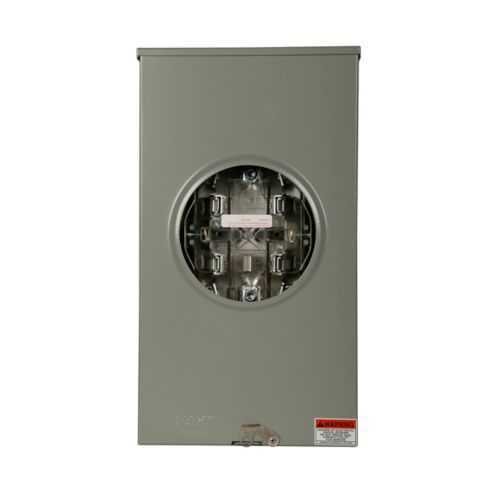

Eaton UTH5203BCH Meter Socket - UL Listed
Part Number: UTH5203BCH
Quick Summary
Eaton meter socket UTH5203BCH provides a reliable, single-position service inlet for 200A commercial or residential installations. If you're juggling space constraints, lead times, and code compliance, this unit simplifies installation and reduces downtime. UL Listed certification ensures safety compliance, while utility approvals from CMP, Emera Maine and NIPSCO confirm field suitability. For engineers and procurement teams, the design supports overhead feeds and aligns with #6‑350 kcmil conductors, delivering measurable business value. Its rugged ringless hub, five-jaw socket design, and lever bypass streamline field installation and service testing. With a 1-phase, 200A rating and #6-350 kcmil compatibility, you can upgrade feeders without rearranging equipment.
Product Information
Extended Description
UTH5203BCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over, Small Hub open, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH5203BCH
UPC
782116109449
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
10.5 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Overhead
Number of jaws
Five-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) IN : Northern Indiana Public Service Company (NIPSCO)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
Hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH5203BCH
Feature: 200A, 600V rating. Business Impact: Supports demanding overhead single-phase service without upgrading equipment, reducing total project cost and future-proofing for mid-range commercial or residential upgrades. Application: Ideal for new meter socket installations at storefronts, multi-family dwellings, or small commercial facilities that require reliable voltage performance. Feature: 1-phase, five-jaw, ringless hub design. Business Impact: Improves alignment and connection integrity, lowering field rework and improving reliability in rugged installation environments. Application: Suitable for overhead feeder runs where quick, accurate assembly is critical, such as construction sites or retrofit projects. Feature: Lever bypass. Business Impact: Enables safe, controlled maintenance without removing service equipment, reducing outage duration and improving safety protocols. Application: Essential for service testing, temporary isolation during panel work, and utility commissioning. Feature: Conductors compatibility (#6-350 kcmil). Business Impact: Accommodates large feeder conductors, enabling fewer junctions and streamlined layouts, which reduces material and labor costs. Application: Useful in commercial feeders and residential service upgrades that require high-capacity input conductors. Feature: Ringless security. Business Impact: Minimizes equipment footprint and risk of physical damage, while simplifying inspection access. Application: Beneficial in space-constrained installations and retrofits where security and ease-of-access matter. Feature: UL Listed and utility approvals. Business Impact: Enhances regulatory compliance and expedites permitting, reducing project delays. Application: Critical for projects in regulated markets and installations requiring CMP, Emera Maine, or NIPSCO approvals. Feature: Warranty and documentation. Business Impact: Provides post-sale support and clear maintenance expectations, lowering total cost of ownership. Application: Aligns with procurement standards for long-term service contracts and asset management.
Get a Quick Quote for a Eaton UTH5203BCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH5203BCH?
Enquire Now
FAQs
For overhead service installs, plan for a single-position, 200A, 600V meter socket with #6-350 kcmil conductors. The five-jaw, ringless design supports precise alignment, while the lever bypass enables safe maintenance without removing the meter. Consider utility approvals and mounting space to ensure quick commissioning and minimal downtime.
The UTH5203BCH is UL Listed, ensuring safety and compliance with standard electrical practices. It also aligns with utility approvals from CMP, Emera Maine and NIPSCO, facilitating field acceptance and smoother permit processing in applicable regions.
This unit is ideal for 1-phase, 200A overhead services in residential and light commercial settings. It supports #6-350 kcmil conductors and a 600V rating, making it suitable for new installations, service upgrades, and retrofit projects where space and efficiency matter.
Lever bypass lets technicians isolate or bypass the service without disconnecting the meter, reducing outage time and improving safety during testing, inspection, or panel work. This feature is particularly valuable in facilities that require high availability and rapid service restoration.
Although the socket is a standard component, UL Listing, large-conductor compatibility, ringless hub design, and quick-access bypass collectively reduce installation time, regulatory delays, and maintenance downtime. Over the life of the asset, these factors translate to lower labor costs and faster project completion.
