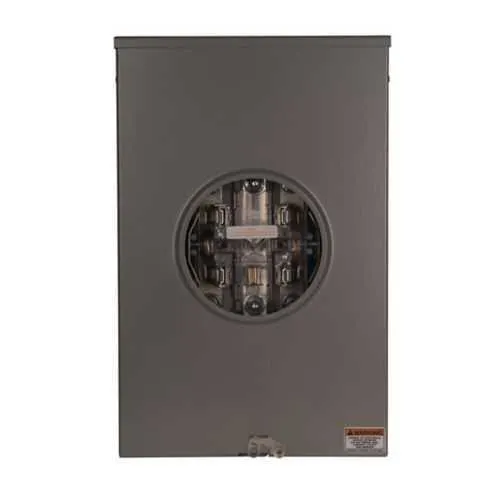

Eaton UTH52103ACH Meter Socket - UL Listed 600V
Part Number: UTH52103ACH
Quick Summary
Eaton meter socket UTH52103ACH provides a reliable, compliant service entrance solution for commercial or residential applications. Finding a unit that meets code and installation constraints can be time-consuming and error-prone, especially when selecting a meter socket that supports future maintenance needs. Key certifications include UL Listed safety certification and Iowa-approved labeling, which help ensure safety, performance, and regional compliance. This product delivers dependable metering access for residential and light commercial projects while aligning with standard metering practices, streamlining procurement, and reducing project risk.
Product Information
Extended Description
UTH52103ACH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Under, Solid top, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH52103ACH
UPC
786685406411
Product Length/Depth
4.93 in
Product Height
20.125 in
Product Width
13 in
Product Weight
25 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Iowa approved
Special features
Solid top
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Bottom
Phase
Single-phase
Number of wires
Three-wire
Hub type
Solid top
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH52103ACH
Feature: 200A amperage rating and single-position design enable standard service connections for most homes and light commercial spaces. Business Impact: Supports typical utility requirements with minimal upgrade needs, reducing project delays and cross-supplier complexity. Application: Ideal for residential and light commercial installations where a robust, code-compliant meter interface is required. Feature: Bottom feed and 1-ph 3-wire configuration simplify routing and compatibility with common electrical layouts. Business Impact: Improves wiring efficiency and reduces field errors during installation. Application: Suitable for meter-to-panel transitions in space-constrained service bays. Feature: Solid top hub, 5-jaw construction, and ringless security provide reliable seating and safer maintenance access. Business Impact: Enhances durability and simplifies bypass operations during service testing. Application: Field service scenarios with frequent maintenance cycles. Feature: Lever bypass and ground connection (#14-#2 Cu) support safe, controlled testing without meter removal. Business Impact: Minimizes downtime and accelerates fault isolation. Application: Routine diagnostics and commissioning workflows. Feature: 600 VAC rating broadens compatibility with utility-grade equipment and future expansions. Business Impact: Future-proofs installations against voltage upgrades and diverse equipment. Application: High-availability metering interfaces in mixed-volt systems. Feature: UL Listed and Iowa-approved labeling confirm compliance with safety and regional codes. Business Impact: Reduces compliance risk and simplifies inspection processes. Application: Regulatory-conscious projects in the U.S. market. Warranty/Support: Eaton’s policy provides a one-year warranty from installation or eighteen months from shipment, supporting long-term maintenance planning and cost control.
Get a Quick Quote for a Eaton UTH52103ACH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH52103ACH?
Enquire Now
FAQs
The UTH52103ACH is designed for single‑position commercial or residential service with bottom feed and a 1‑ph, 3‑wire configuration. It supports conductors from #6 to #350 kcmil and fits typical metering setups in residential and light commercial applications.
The lever bypass allows service technicians to bypass the meter during testing or maintenance without removing the meter, minimizing downtime and enabling faster fault isolation while preserving system integrity.
The unit is UL Listed and Iowa‑approved, signaling compliance with recognized safety standards and regional regulatory requirements. These certifications help ensure safe operation, simplify inspections, and support reliable performance in both residential and light commercial environments.
Yes. It is rated for 200A and accommodates conductors from #6 to #350 kcmil, and supports 600 VAC, making it suitable for current needs and potential future system upgrades within a metering context.
The product carries Eaton’s warranty policy 25-000, offering one year from installation or up to eighteen months from shipment, whichever occurs first, providing coverage during initial deployment and early operation.
