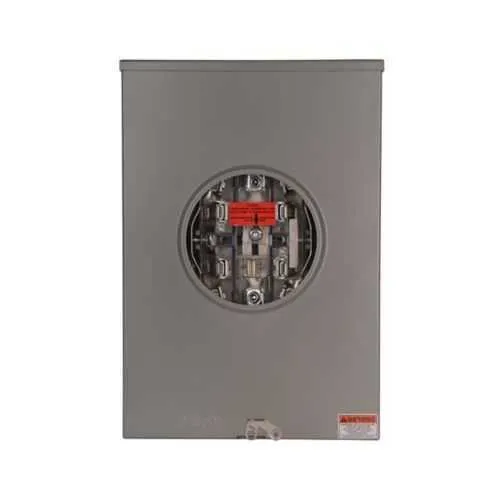

Eaton UTH5213BNDCH Meter Socket - 200A, 600V UL Listed
Part Number: UTH5213BNDCH
Quick Summary
Eaton meter socket enables secure 200A service connections for commercial or residential installations. This design addresses common field challenges such as compatibility with large feeders and reliable grounding while minimizing downtime. UL Listed is a core safety certification guiding code compliance, complemented by regional utility approvals to support installations in Kentucky, Texas, New Mexico, and Wisconsin. With top/bottom feed, a lever bypass, and a ringless design, this meter socket delivers faster, safer commissioning and straightforward service access for modern electrical systems.
Product Information
Extended Description
UTH5213BNDCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, Small hub open, #6-350 kcmil, 5-jaw, 3-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH5213BNDCH
UPC
782113684062
Product Length/Depth
4.94 in
Product Height
19 in
Product Width
13 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Three-phase
Utility approvals
KY : Louisville Gas & Electric/Kentucky Utilities TX : Oncor TX : Pedernales Electric Cooperative NM : Texas-New Mexico Power (TNMP) TX : Texas-New Mexico Power (TNMP) WI : WE Energies / Wisconsin Public Service (WPS)
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Four-wire
Hub type
Small hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Eaton Specification Sheet - UTH5213BNDCH
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200A Amperage Rating with 3-phase, 4-wire configuration → Business Impact: Supports scalable, high-demand services without mid-project upgrades, reducing total project cost and downtime. Application: Ideal for commercial entrances and large-residential feeders, aligning with long-term capacity planning. Feature: Five-jaw sockets and ringless construction → Business Impact: Ensures secure, vibration-resistant connections and minimal corrosion risk, lowering maintenance cycles. Application: Suitable for harsh industrial environments and long service life. Feature: Top/bottom feed and small hub opening → Business Impact: Simplifies installation in constrained spaces and streamlines routing of conductors, reducing labor time. Application: Fits compact meter enclosures in urban builds. Feature: Lever bypass and ground connection (#14-#2 Cu) → Business Impact: Enables quick isolation for maintenance while preserving a solid, code-compliant ground path. Application: Critical for service reliability and safety in multi-tenant facilities. Feature: 600V rating with #6-350 kcmil conductors → Business Impact: Supports high-voltage distribution and large feeder sizes, minimizing bottlenecks in heavy-duty systems. Application: Common in commercial or multi-tenant electrical infrastructure. Feature: UL Listed with regional utility approvals → Business Impact: Enhances regulatory compliance and reduces approval cycles with utilities such as LG&E/KU, Oncor, TNMP, and WIS. Application: Streamlines procurement and commissioning for utility-backed projects.
Get a Quick Quote for a Eaton UTH5213BNDCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH5213BNDCH?
Enquire Now
FAQs
Yes. The UTH5213BNDCH is a 200A, 3-phase, 4-wire meter socket designed for top/bottom feed. It uses #6-350 kcmil conductors and has a small hub opening with a 5-jaw socket, enabling secure, code-compliant connections in both commercial and residential installations.
Key specs include 200A amperage rating, 600V voltage rating, 3-phase, 4-wire configuration, 1 socket, five-jaw design, ringless construction, and lever bypass. Also confirm conductor ranges (#6-350 kcmil) and grounding with #14-#2 Cu, plus UL Listed certification for safety compliance.
Yes. The unit carries utility approvals for Louisville Gas & Electric/Kentucky Utilities, Oncor, Texas-New Mexico Power, and Wisconsin utilities, supporting streamlined acceptance in the indicated regions and reducing project risk during permit and interconnection processes.
The product follows Eaton’s warranty policy: one year from the date of installation or eighteen months from shipment, whichever occurs first. This provides coverage for manufacturing defects and supports long-term project ROI when installed by qualified personnel.
Lever bypass enables quick isolation of the metering path for maintenance without removing the socket, while the ringless design reduces installation complexity and potential ground fault pathways. Together, they minimize downtime and simplify routine service work in busy facilities.
