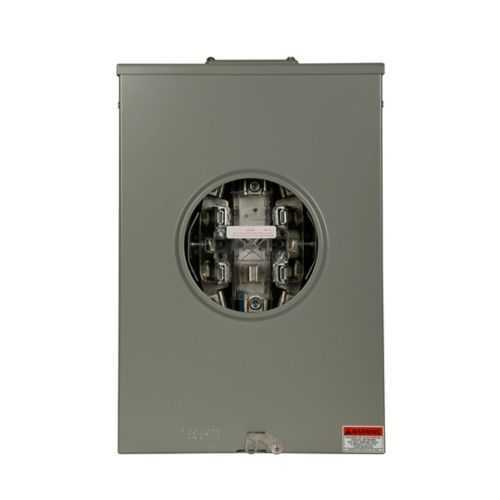

Eaton UTH5213ZCH Meter Socket - UL Listed 600V
Part Number: UTH5213ZCH
Quick Summary
Eaton meter socket is a robust, single-position service point ideal for commercial or residential power distribution. Engineers often struggle with balancing flexibility and safety when selecting metering hardware for mixed-voltage, multi-branch systems; this unit delivers with a versatile top/bottom feed, five-jaw design, and ringless security. It carries UL Listed certification and is Green Mountain approved for certain jurisdictions, with utility compatibility including Central Maine Power. By combining a lever bypass for maintenance continuity with support for #6-350 kcmil conductors, the solution reduces downtime and simplifies installation. For projects targeting metering products, residential service reliability, and light commercial metering, this meter socket provides strong business value and long-term reliability.
Product Information
Extended Description
UTH5213ZCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over/under, Large to small hub adapter, #6-350 kcmil, 5-jaw, 1-ph or 3-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH5213ZCH
UPC
782116016556
Product Length/Depth
4.93 in
Product Height
19 in
Product Width
13 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Green Mountain approved
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Five-jaw
Phase
Single-phase, three-phase
Utility approvals
ME : Central Maine Power
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening with 3-5/16 in adapter plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH5213ZCH
Feature: 200A amperage rating. Business Impact: Supports high-load residential and commercial metering without oversizing, reducing upfront cost for customers while maintaining headroom for future growth. Application: 1-ph or 3-ph service in light commercial or multi-residential buildings. Feature: Top/bottom feed. Business Impact: Flexible installation options that minimize conduit routing and field modifications. Application: New builds and retrofit metering projects. Feature: Five-jaw design with #6-350 kcmil capacity. Business Impact: Broad conductor compatibility reduces inventory complexity and speeds up installation. Application: Service entrances requiring large feeders. Feature: Ringless security with lever bypass. Business Impact: Safer, tamper-resistant operation and rapid maintenance without full disconnection. Application: Utility-grade metering in urban and suburban settings. Feature: 5x5 hub opening with adapter plate. Business Impact: Streamlined integration with existing hubs and adapters, lowering commissioning time. Application: Retrofitting older meter bases or standardizing across sites.
Get a Quick Quote for a Eaton UTH5213ZCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH5213ZCH?
Enquire Now
FAQs
The UTH5213ZCH supports single-position commercial or residential service with top or bottom feed, five-jaw connections, and a 5x5 hub opening using a 3-5/16 in adapter plate. It accommodates conductor sizes from #6 to 350 kcmil and is suitable for 1‑ph or 3‑ph metering in new builds or retrofit projects.
Key specifications include a 200A amperage rating, 600V voltage rating, five-jaw design, ringless security, lever bypass, and three-wire service. It uses conductors in the #6–350 kcmil range and supports 1‑ph or 3‑ph configurations, making it versatile for various metering needs.
Yes. The meter socket is designed for single-phase and three-phase configurations, with top or bottom feed and a five-jaw setup to accommodate the required conductor sizes, enabling flexible metering for homes, apartments, and light commercial applications.
The unit is UL Listed and Green Mountain approved, with additional utility compatibility for systems such as Central Maine Power. These certifications support compliance with safety and metering standards and help ensure acceptance across multiple jurisdictions.
Key advantages include a lever bypass for maintenance without full service interruption, a ringless design for tamper resistance, and a hub/opening configuration that simplifies mounting and adapter plate installation. These features collectively reduce downtime, improve safety, and streamline field work, delivering measurable ROI on metering projects.
