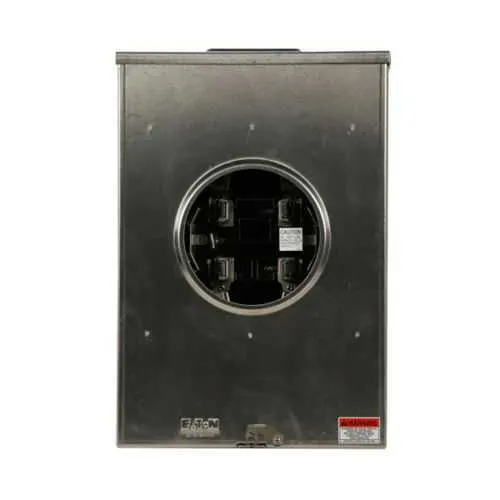

Eaton UTH5300TCH meter socket - 600 V, UL Listed
Part Number: UTH5300TCH
Quick Summary
Eaton meter socket UTH5300TCH is a rugged single-position service device for commercial or residential metering. Installers often struggle with space, wiring compatibility, and meeting code requirements in tight installations. UL Listed certification supports safety and code compliance, while the lever bypass and robust 600 V rating simplify field service. This meter socket design helps utilities and contractors reduce downtime and maintenance costs while ensuring reliable metering. With a 320A amperage rating and overhead feed, it supports scalable service upgrades and easy retrofit in existing buildings.
Product Information
Extended Description
UTH5300TCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over, 5x5 inch hub open, 3/8 inch stud, 5-jaw, 1-ph, 3/8 inch stud, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH5300TCH
UPC
782116144679
Product Length/Depth
6.5 in
Product Height
39.88 in
Product Width
20 in
Product Weight
61 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Overhead
Number of jaws
Five-jaw
Phase
Single-phase
Line
3/8 in stud
Load
3/8 in stud
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH5300TCH
Feature: 320A amperage rating in a single‑phase design. This configuration matches typical commercial and residential service needs, helping to avoid oversizing and unnecessary panel upgrades, which translates to lower equipment and installation costs. Application: Use in overhead service entrances where 320A feeds are standard and space constraints are a concern. Business Impact: Enables cost-effective, scalable metering solutions for growing facilities. Feature: Overhead feed with a 5 x 5 hub opening. Business Impact: Streamlines installation by accommodating common meter cabling layouts and reducing field wiring complexity. Application: Suitable for new builds and renovations where overhead metering is preferred or required by local utility practices. Feature: Five‑jaw design with 3/8 inch line and load studs for three‑wire, single‑phase service. Impact: Provides secure terminations with low resistance, improving voltage stability and fault tolerance. Application: Works with standard 3/8 inch conductors in meter sockets for reliable interconnection. Feature: Lever bypass and ringless enclosure. Impact: Enables quick bypass testing and reduces cover tampering; ringless construction minimizes entry points. Application: Field service scenarios in commercial settings where rapid testing and security matter. Feature: UL Listed certification and 600 V rating. Impact: Confirms compliance with safety standards, easing inspection and approval processes and reduces rework. Application: Ideal for code-compliant meter installations in both commercial and residential projects. Feature: Durable enclosure and practical dimensions plus warranty. Impact: Predictable installation footprint and robust field performance; warranty coverage reduces lifecycle risk. Application: Useful for planning space, mounting, and maintenance budgeting in facilities.
Get a Quick Quote for a Eaton UTH5300TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH5300TCH?
Enquire Now
FAQs
The UTH5300TCH is designed for overhead feeding and single‑phase service with a 320A rating. Plan for a 5 x 5 hub opening, 3/8 inch line/load studs, and space for secure ringless mounting. Ensure the enclosure can accommodate the 39.88 inch height and 20 inch width, and verify that local codes allow a lever bypass configuration for safe testing.
Key specifications include a 320A amperage rating, single‑phase configuration, 600 V voltage rating, five‑jaw design, and 3/8 inch line/load studs for a three‑wire system. The device uses overhead feed connections, a 5 x 5 hub opening, and a lever bypass with ringless ground configuration to support safe, code‑compliant metering.
Yes. The unit is specified as a single-position commercial or residential service meter socket with overhead feed. It supports standard 320A headroom, 3/8 inch stud terminations, and a five‑jaw design, making it versatile for both new installations and upgrades in multifamily, office, or light commercial properties.
The UTH5300TCH carries UL Listed certification, which indicates compliance with recognized safety standards and helps streamline electrical inspections. This certification reduces rework risk during code reviews and improves confidence for contractors, utilities, and property managers when delivering metering installations that meet regulatory requirements.
The meter socket ships with a one-year warranty from installation (or 18 months from shipment, whichever occurs first), providing protection against manufacturing defects. The robust 320A/600V design, lever bypass, and ringless construction minimize maintenance downtime and parts replacement, contributing to lower total cost of ownership over the asset’s lifecycle.
