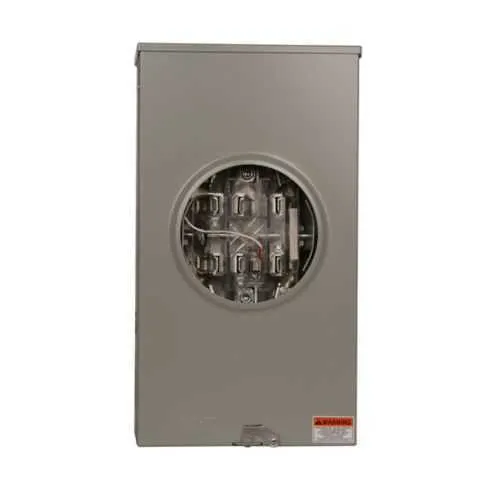

Eaton UTH7203CCH Meter Socket - UL Listed
Part Number: UTH7203CCH
Quick Summary
Eaton UTH7203CCH Meter Socket delivers reliable service connections for commercial and residential installations. Field technicians often contend with mismatched components and hard-to-wire meters that slow projects and raise costs. UL Listed certification ensures safety compliance, while utility approvals from Alliant (IP&L and WP&L) in IA and WI and Central Maine Power support site acceptance. With 200A capacity, overhead feed, seven-jaw design, and lever bypass, this unit streamlines installation and reduces downtime, while compatibility with #6–350 kcmil conductors supports long-term scalability for growing electrical loads. This combination delivers measurable business value through faster commissioning and safer metering connections.
Product Information
Extended Description
UTH7203CCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 200A, Over, Small hub closing plate mounted, #6-350 kcmil, 7-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH7203CCH
UPC
782116137978
Product Length/Depth
4.93 in
Product Height
19 in
Product Width
10.5 in
Product Weight
30 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Milbank part number: U4701-XL, Iowa, Wisconsin approved
Type
Single-position commercial or residential service
Amperage Rating
200A
Feed type
Overhead
Number of jaws
Seven-jaw
Phase
Single-phase
Utility approvals
IA : Alliant (IP&L and WP&L) WI : Alliant (IP&L and WP&L) ME : Central Maine Power
Line
#6-350 kcmil
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
Hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH7203CCH
200A current rating provides service readiness for typical commercial or large residential loads. The 1-phase, three-wire configuration keeps wiring straightforward and reduces field errors during installation. In practice, this means faster approvals, fewer call-backs, and smoother startup in new builds or retrofit projects. Seven-jaw design with ringless security and a hub cover plate delivers robust mechanical connection and tamper-resistance. The ringless mounting reduces miswiring and installer effort, cutting field termination time and enhancing overall reliability on busy sites. This is especially valuable in environments with vibration, dust, or limited space. Lever bypass supports maintenance and testing without interrupting service, improving uptime and safety for ongoing operations. Field technicians can simulate load conditions or perform routine checks quickly, reducing outage windows and restoration time. Line and load conductors range from #6 to 350 kcmil, enabling a single socket to support a wide array of feeders. This simplifies procurement, inventory, and escalation planning for projects with evolving load profiles. UL Listed safety certification and utility approvals from Alliant in IA/WI and Central Maine Power ensure regulatory compliance and site acceptance. This reduces procurement risk and accelerates project sign-off, especially for utility-coordinated installations. Overall dimensions and weight—4.93 in depth, 19 in height, 10.5 in width, approximately 30 lb—support straightforward handling, mounting, and fit within standard meter bases. The 600V rating and lever bypass further reinforce reliability in diverse service conditions.
Get a Quick Quote for a Eaton UTH7203CCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH7203CCH?
Enquire Now
FAQs
The UTH7203CCH is designed for overhead single-position metering with a 200A rating and 600V maximum. Its seven-jaw, three-wire configuration simplifies wiring, while the hub cover plate and ringless design streamline mounting and reduce labor. Ensure compatibility with #6–350 kcmil conductors and verify utility approvals for IA, WI, or ME as part of site acceptance.
Key specs include 200A amperage rating, single-phase, three-wire configuration, 600 V voltage rating, seven-jaw connections, overhead feed type, and lever bypass. Conductors range from #6 to 350 kcmil for both line and load, with a ringless security design to improve installation efficiency and safety during metering.
Yes. The UTH7203CCH supports #6–350 kcmil conductors for line and load, enabling a single meter socket to accommodate a wide range of feeders. This reduces the need for multiple metering solutions, simplifies procurement, and helps future-proof installations as load requirements grow while maintaining compliance with UL Listed standards.
The unit carries UL Listed certification for safety compliance. It also aligns with utility approvals: IA Alliant energy (IP&L and WP&L) in Iowa and Wisconsin, and Central Maine Power in ME, supporting site acceptance and coordinated utility metering projects across multiple jurisdictions.
Lever bypass capabilities reduce downtime during maintenance, while the robust seven-jaw ringless design minimizes field termination errors. The 200A rating supports typical service loads, limiting future upgrades, and the UL-listed safety and utility approvals help reduce commissioning risk. Together, these factors lower lifecycle costs and accelerate time-to-operational status.
