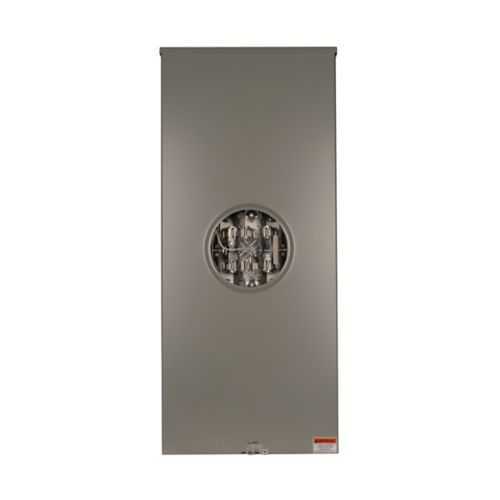

Eaton meter socket UTH7300UCH - UL Listed
Part Number: UTH7300UCH
Quick Summary
Eaton meter socket UTH7300UCH is a high-capacity, single-position service meter socket designed for commercial and residential metering applications. Installing incompatible metering gear or struggling with awkward hub configurations can delay projects and create compliance challenges. UL Listed certification ensures safety and code compliance, Iowa approved status supports local inspections, and Central Maine Power utility approval aligns with regional metering requirements. As a 320A, 1-phase, 3-wire unit with a 5x5 hub cover plate and lever bypass, it streamlines installation while maintaining robust grounding and safety. This combination supports a scalable metering strategy, delivering reliability and faster return to service for modern facilities.
Product Information
Extended Description
UTH7300UCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub cover plate, 3/8 inch stud, 7-jaw, 1-phase, 3/8 inch stud, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH7300UCH
UPC
782116127306
Product Length/Depth
36.13 in
Product Height
6.63 in
Product Width
15.63 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Iowa approved
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power
Line
3/8 in stud
Load
3/8 in stud
Number of wires
Three-wire
Hub type
5 x 5 hub cover plate
Connection
Ground connection
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH7300UCH
Feature: 320A amperage rating. Business Impact: Supports high-load commercial or multi-residence needs without oversized infrastructure. Application: New builds and retrofit projects seeking efficient service capacity. The higher rating can translate to reduced equipment footprints or fewer metering points. Feature: Single-position commercial or residential service. Business Impact: Simplifies compatibility across diverse panels and reduces mis-wiring risk. Application: Ideal for mixed-use properties and small commercial spaces. Feature: Top/bottom feed with seven jaws and three-wire configuration. Business Impact: Flexible installation and robust conductor termination improve reliability and safety. Application: Suitable for both retrofit and new installations in restricted spaces. Feature: Ground connection and ringless security. Business Impact: Strong grounding and tamper-resistant design minimize fault currents and tampering threats. Application: Critical in utility-ready metering environments. Feature: Lever bypass and 600 V rating. Business Impact: Quick reconnect capability reduces service downtime and expands maintenance efficiency. Application: Essential for rapid servicing during demand changes or outages. Certifications and notes: UL Listed; Iowa approved; ME Central Maine Power approval, ensuring regulatory alignment for regional projects.
Get a Quick Quote for a Eaton UTH7300UCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH7300UCH?
Enquire Now
FAQs
The UTH7300UCH is designed for single-position commercial or residential service with a 3-wire, 1-phase configuration and top or bottom feed. Its 7-jaw design and 5x5 hub cover plate simplify integration with common meter racks, reducing compatibility issues during retrofit projects and ensuring straightforward field installation for residential panels and light commercial applications.
Key specs include 320A amperage rating, 600V maximum voltage, three-wire configuration, and seven-jaw design. It supports top or bottom feed, uses 3/8 inch studs for line and load, and includes a ground connection with a ringless, lever-bypass utility-ready setup, all geared toward safer, reliable metering in commercial and residential settings.
Yes. The unit carries ME Central Maine Power utility approval in addition to UL Listed certification and Iowa approval. This combination aligns the meter socket with regional metering requirements, streamlining permitting and inspections for projects in Maine and neighboring service territories that recognize these approvals.
Lever bypass enables rapid reconnection without extensive disassembly, while top/bottom feed and a 5x5 hub cover plate simplify wiring routing and cover installations. Ground connection and ringless construction reduce tampering concerns and grounding complexity, translating to faster commissioning, fewer service calls, and lower lifecycle costs for metering projects.
Eaton provides a one-year warranty from installation or eighteen months from shipment, whichever occurs first, under policy 25-000. Support includes standard product documentation, UL and utility approvals, and access to Eaton technical resources for installation guidance, troubleshooting, and compliance-related inquiries, helping ensure long-term performance and service continuity.
