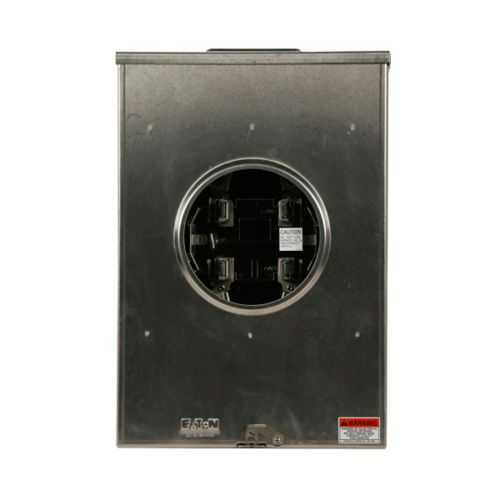

Eaton UTH7330UFLCH Meter Socket - UL Listed
Part Number: UTH7330UFLCH
Quick Summary
The Eaton UTH7330UFLCH meter socket delivers reliable 320A single-position service for commercial or residential installations. It addresses common panel upgrade pain points by offering a robust four-wire configuration, ringless jaw design, and a lever bypass that speeds servicing without sacrificing safety. This UL-listed unit is designed for 600 V operation and three-phase systems, with top/bottom feed and a 5x5 hub cover plate for flexible mounting. MEG utility approvals across multiple states further support code compliance and project acceptance in utility-backed programs. For engineers and procurement teams, the combination of rugged construction, straightforward installation, and long-term warranty translates to reduced downtime and lower lifecycle costs while maintaining electrical safety and reliability.
Product Information
Extended Description
UTH7330UFLCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub cover plate, 3/8 inch stud, 7-jaw, 3-ph, 3/8 inch stud, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, four-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH7330UFLCH
UPC
782116128365
Product Length/Depth
6.5 in
Product Height
39.88 in
Product Width
20 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) FL : Tallahassee City Electric
Line
3/8 in stud
Load
3/8 in stud
Number of wires
Four-wire
Hub type
5 x 5 hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH7330UFLCH
High-capacity 320A rating supports demanding commercial or residential feeders, enabling a single-position service that reduces switchgear footprint. This translates to smaller panel enclosures, faster installation, and lower upfront costs for the project. The three-phase, four-wire configuration with 3/8 inch studs and seven-jaw design provides robust power distribution for multi-tenant or industrial-adjacent applications, supporting consistent voltage and safer fault containment. Top/bottom feed options combined with a 5x5 hub cover plate offer flexible mounting, simplifying retrofits and new builds alike, while ringless security reduces commissioning time and minimizes corrosion risk in outdoor installations. Lever bypass enhances serviceability without compromising safety, enabling quick isolation during maintenance or meter exchanges. Ground connections sized for #14-#2 Cu ensure dependable earth continuity in diverse building codes and local jurisdictions. The UL-listed rating and 600 VAC capability reinforce compliance with strict electrical standards, reducing inspection friction and rework costs. When paired with MEG-approved utility programs, this meter socket becomes a dependable foundation for reliable service provisioning in both commercial and residential projects.
Get a Quick Quote for a Eaton UTH7330UFLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH7330UFLCH?
Enquire Now
FAQs
Begin by verifying panel compatibility for 3-phase, 4-wire service and top/bottom feed. Mount the unit using the 5x5 hub plate, connect the 3/8 inch line and load studs, and secure the ground with #14-#2 Cu. Engage the lever bypass only for maintenance or testing, and ensure Ringless jaws are free of obstructions before energizing. Always follow local electrical codes and UL listing guidelines during installation.
It is designed as a three-phase, four-wire configuration with a single 1-socket output and seven-jaw construction to manage phase balance and fault containment. The 600 V rating supports standard commercial and residential 3-phase deployments, while top/bottom feed and robust grounding provide reliable, code-compliant service for multi-tenant or industrial-adjacent facilities.
Yes. The unit carries UL Listing and is referenced in MEG utility approvals across multiple states, including Duke Energy and Florida power providers. This broad utility compatibility speeds project approvals and reduces installation risks when connecting to MEG-backed distribution networks.
The UTH7330UFLCH is UL Listed and rated for 600 V operation with a 320 A amperage rating. It supports four-wire, top/bottom feed configurations and incorporates a ringless jaw design with seven jaws for secure, code-compliant connections in commercial and residential service panels.
Lever bypass allows quick and safe isolation of the meter socket during maintenance or meter exchanges, reducing downtime and service disruption. Combined with ringless design and straightforward grounding, this can lower service time, improve maintenance reliability, and contribute to lower lifecycle costs through faster turnaround and fewer invasive panel interventions.
