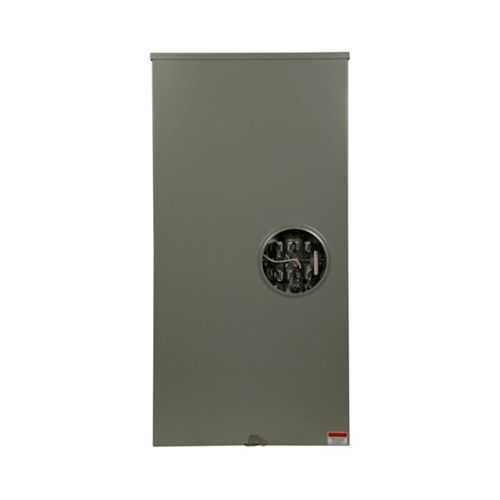

Eaton UTH73369THLCH Meter Socket - UL Listed 600V
Part Number: UTH73369THLCH
Quick Summary
Eaton meter socket handles 320A commercial or residential service connections for three-phase systems. Installers often face compatibility gaps, ringless bypass concerns, and space constraints that slow projects. This unit is UL Listed with Entergy approvals, supporting safe, compliant installations across multiple utility regions. Designed for predictable integration in modern metering mains, it offers top/bottom feed, a 5x5 hub, and a lever bypass for quick isolation. Built to accommodate large conductors and tight installation footprints, it delivers reliable performance while reducing upgrade costs and project downtime. Ideal for new builds, multifamily housing, and commercial facilities seeking robust metering infrastructure.
Product Information
Extended Description
UTH73369THLCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub open, #4-600MCM, 7-jaw, three-ph, (2) #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 4-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH73369THLCH
UPC
782116103591
Product Length/Depth
6.5 in
Product Height
39.88 in
Product Width
20 in
Product Weight
36 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Three-phase
Utility approvals
AR : Entergy LA : Entergy MS : Entergy TX : Entergy TX : Oncor TX : Pedernales Electric Cooperative
Line
#4-600MCM
Load
(2) #6-350 kcmil
Number of wires
Four-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Feature: 320A amperage rating with 600V voltage rating. Business Impact: Supports high-demand commercial or residential service entrances with a compact footprint, reducing equipment tiers and overall project costs. Application: Ideal for three-phase, four-wire metering mains in new constructions or retrofits. Feature: Top/bottom feed capability and seven-jaw configuration. Business Impact: Enables flexible installation and secure conductor termination, improving reliability and field adaptability. Application: Suitable for diverse building layouts and service entrance designs where space is at a premium. Feature: 5x5 hub opening and ringless security. Business Impact: Simplifies cable routing while minimizing tamper opportunities, enhancing safety and compliance. Application: Primary choice for metering installations requiring streamlined conduit management. Feature: (2) #6-350 kcmil load and #4-600MCM line connections. Business Impact: Supports large conductor demands, reducing the need for early-upsizing or service upgrades. Application: Fits heavy-gauge feeders for commercial and multifamily projects. Feature: Lever bypass and ground connection (#14-#2 Cu). Business Impact: Quick, safe isolation during maintenance; reliable grounding improves fault safety and system integrity. Application: Critical for field service and routine maintenance in any service entrance. Feature: UL Listed and utility approvals (Entergy across multiple states). Business Impact: Demonstrates regulatory compliance and utility acceptance, lowering procurement risk. Application: Essential for projects in regulated markets and utility interconnects. Feature: Single-position commercial or residential service with ringless security. Business Impact: Simplifies procurement and installation while delivering a robust, tamper-resistant metering solution. Application: Broadly suitable for new builds and retrofit projects in both residential and small-to-mid size commercial applications.
Get a Quick Quote for a Eaton UTH73369THLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH73369THLCH?
Enquire Now
FAQs
This Eaton meter socket supports top/bottom feed and a 5x5 hub with 7-jaw configuration, making it ideal for compact meter mains. It accommodates large conductors (Line: #4-600MCM, Load: (2) #6-350 kcmil) and a four-wire, three-phase setup, helping installers manage limited footprints without sacrificing connection quality or safety.
Yes. The unit is specified as a single-position commercial or residential service meter socket. With a 320A rating and 600V capacity, it supports three-phase applications and four-wire metering, making it versatile for multifamily buildings, small offices, and new residential developments.
The UTH73369THLCH is UL Listed, indicating recognized electrical safety performance. It also carries utility approvals across several states (e.g., Entergy in LA, MS, TX, and others), which simplifies interconnection and compliance in regulated markets.
Key factors include lever bypass for quick isolation, ringless design to minimize tampering, and-ground continuity with #14-#2 Cu. The device also supports top/bottom feed and a 5x5 hub, enabling straightforward wiring routes and faster service restoration after maintenance.
Benefits include reliable 320A capacity for demanding loads, UL safety certification for risk reduction, and utility approvals that ease procurement. Its compatibility with large conductors and flexible feed options lowers upgrade costs, reduces installation time, and improves long-term service quality for both new builds and retrofit projects.
