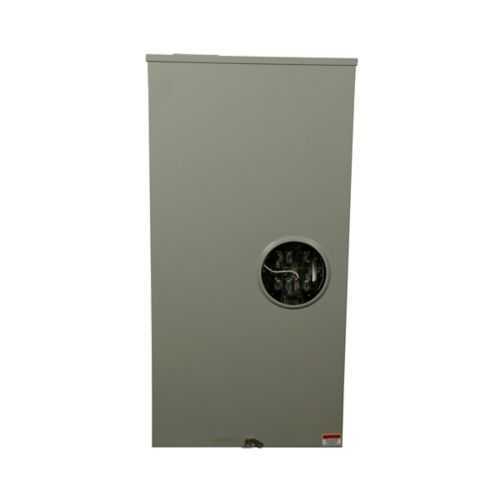

Eaton UTH73369UHLCH Meter Socket - UL Listed 600V
Part Number: UTH73369UHLCH
Quick Summary
Eaton UTH73369UHLCH meter socket is a 320A single-position meter socket designed for both commercial and residential service. It addresses common installation challenges by combining a ringless design with a lever bypass for safer, faster maintenance. UL Listed certification underpins safety and reliability, while the 600 VAC rating supports diverse utility connections. This solution also aligns with modern metering strategies, offering straightforward integration with Eaton’s metering ecosystem and scalable configurations for multi-tenant installations. For engineers and procurement teams, it balances performance, compliance, and total cost of ownership across project lifecycles.
Product Information
Extended Description
UTH73369UHLCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub cover plate, #14-1/0 AWG, 7-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH73369UHLCH
UPC
782116139323
Product Length/Depth
6.5 in
Product Height
39.89 in
Product Width
20 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Single-phase
Line
#14-1/0 AWG
Load
#6-350 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTH73369UHLCH
Feature the 320A amperage rating and single-position 1-ph design enables robust service capability for commercial or residential installs, improving system reliability and reducing the need for early upgrades. Business impact is clear: lower lifecycle costs and fewer field rewires; applications include high-load meter installations where space and accessibility are at a premium. Feature top/bottom feed alongside a seven-jaw configuration and a 5 x 5 hub cover plate to maximize wiring options, promoting faster, cleaner installations and easier future expansion in commercial buildings and multi-tenant residences. The lever bypass provides a safer, quicker isolation method during maintenance, reducing downtime and improving on-site safety during service work. This design also supports ringless installation, decreasing tamper risk and simplifying retrofits in aging electrical infrastructure. Compatibility with UL Listed standards and 600 VAC operation ensures compliance and reliable performance in industrial environments, while the three-wire configuration aligns with common utility service practices. In practice, contractors appreciate the balance of rigidity and flexibility, enabling predictable electrical room layouts and consistent metering practices across sites.
Get a Quick Quote for a Eaton UTH73369UHLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH73369UHLCH?
Enquire Now
FAQs
The UTH73369UHLCH is designed for top/bottom feed, 1‑phase, and 3‑wire configurations, with a 5x5 hub cover plate and seven jaws. This combination accommodates varied utility requirements, simplifies field wiring, and reduces the need for adapters. It supports straightforward mounting in standard meter cabinets and aligns with typical commercial and multifamily residential applications, accelerating project timelines.
Key specs include a 320A amperage rating, 600 VAC voltage rating, single‑phase operation, and seven jaws. It supports #14‑1/0 AWG line conductors and #6‑350 kcmil load conductors, with three wires total. These features enable reliable metering for high-load services while maintaining safe, standards-compliant operation in both new builds and retrofits.
Yes. The UTH73369UHLCH is a single‑position meter socket suitable for commercial or residential service. It supports 320A service with a lever bypass and ringless design, making it ideal for utility meters in office buildings, retail spaces, multifamily housing, and other commercial or light industrial applications where 600 VAC operation and reliable metering are required.
The meter socket is UL Listed, ensuring compliance with widely adopted electrical safety standards. This certification provides assurance to installers, inspectors, and building owners that the device meets safety requirements for metering equipment in commercial and residential environments, reducing project risk and enhancing the likelihood of successful inspections.
Eaton’s policy offers a one-year warranty from installation or eighteen months from shipment, whichever occurs first. This warranty supports predictable maintenance planning and reduces unplanned downtime. In practice, pairing the socket with proper installation practices and periodic inspections helps minimize service interruptions and extend asset life, delivering a favorable total cost of ownership for metering infrastructure.
