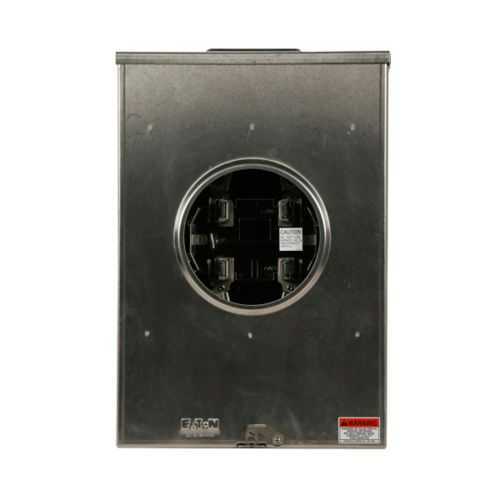

Eaton UTH7336TCH Meter Socket - UL Listed
Part Number: UTH7336TCH
Quick Summary
The Eaton UTH7336TCH meter socket is a reliable single-position service interface for commercial and residential installations. Installers often confront clumsy wiring, limited compatibility with large conductors, and downtime during maintenance. It carries UL Listed certification and is approved by AEP West and East, with Entergy Texas validation, helping utilities meet code while streamlining project approvals. For metering products and power distribution projects, this unit delivers predictable performance, safer connections, and reduced maintenance downtime, translating to faster project completion and lower total cost of ownership.
Product Information
Extended Description
UTH7336TCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 320A, Over/under, 5x5 inch hub open, #600 kcmil conns, 7-jaw, 1-ph, #600 kcmil conns, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTH7336TCH
UPC
782116034239
Product Length/Depth
6.5 in
Product Height
39.88 in
Product Width
20 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
AEP West, AEP East approved
Type
Single-position commercial or residential service
Amperage Rating
320A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Single-phase
Utility approvals
TX : Entergy
Line
#600 kcmil
Load
#600 kcmil
Number of wires
Three-wire
Hub type
5 x 5 hub opening
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Selling Policy 25-000 - Distribution and Control Products and Services
320A amperage rating and 600V maximum voltage enable this meter socket to support demanding commercial and light industrial services without upgrading field equipment. The single-position, 3-wire, single-phase design simplifies service entry and helps ensure code compliance for metering enclosures, reducing commissioning time on new builds and retrofits where #600 kcmil conductors are used. The 5x5 hub opening and seven-jaw configuration provide versatile conductor routing with secure engagement, improving reliability in crowded service rooms and simplifying future upgrades. Lever bypass and ringless security minimize downtime during maintenance and deter tampering, which translates to lower maintenance costs and safer operation in busy facilities. Ground connections via #14-#2 Cu support robust earth continuity, while the 600 Vac rating ensures compatibility with modern distribution systems. UL listing and utility approvals (AEP West/East, Entergy TX) accelerate plan checks and field acceptance, reducing risk and expediting project timelines.
Get a Quick Quote for a Eaton UTH7336TCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTH7336TCH?
Enquire Now
FAQs
The UTH7336TCH is designed for #600 kcmil conductors on both line and load sides, featuring a seven-jaw configuration and a 5x5 hub opening. This combination supports large-diameter conductors while maintaining secure, code-compliant connections, enabling reliable service for high-demand commercial and residential installations.
Key specifications include a 320A amperage rating, 600V voltage rating, single-phase three-wire configuration, top/bottom feed, 1 socket, and a 5x5 hub opening with ringless security and lever bypass. These specs support robust metering interfaces for utility-backed services and retrofit projects.
Yes. It is a single-position meter socket designed for both commercial and residential service entrances, featuring 320A capacity and 600V rating. Its flexible feed options, ringless security, and lever bypass make it well-suited for metering centers, upgrades, and new build projects where reliability and service continuity matter.
The meter socket is UL Listed and carries utility approvals including AEP West and AEP East, along with Entergy TX validation. These certifications support compliance with regulatory and utility requirements, facilitating quicker approvals and field acceptance in many regions.
Design features such as lever bypass enable maintenance without full power isolation, while ringless construction reduces tampering risk. The unit supports #600 kcmil conductors and 600 Vac operation, aiding consistent performance in demanding environments. The combination minimizes downtime, simplifies service restorations, and supports safer, faster installations in metering applications.
