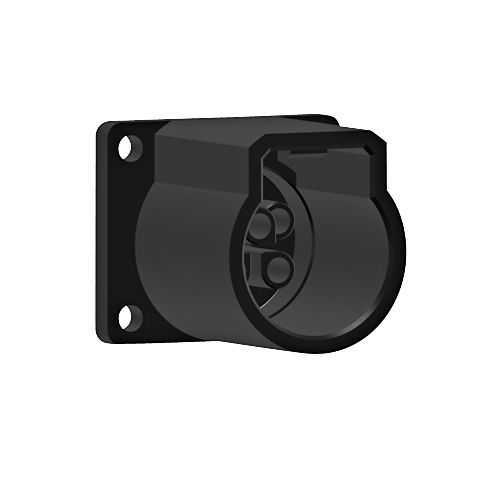

Eaton UTL0103G1P Receptacle - 3G1 Layout Push-Pull IP68
Part Number: UTL0103G1P
Quick Summary
UTL0103G1P is a square flange receptacle in the Eaton Souriau UTL series designed for UL/IEC power and control supply connections in rugged industrial equipment. In space-constrained panels, improper mating and environmental exposure threaten uptime and safety. This unit complies with IEC 61984 and UL 1977, and supports RoHS and REACH, ensuring regulatory alignment. Its compact 42 mm depth, 33.6 mm width, and 28.6 mm height enable easy integration with standard cutouts, while the 16 A current rating supports reliable power and control for demanding systems. For panel builders and integrators, the combination of small footprint and robust environmental sealing translates into faster installation and lower lifecycle costs.
Product Information
Extended Description
UTL0103G1P Eaton: Male square flange receptacle, 3G1 layout; UTL0103G1P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL0103G1P
Product Length/Depth
42 mm
Product Height
28.6 mm
Product Width
33.6 mm
Product Weight
16 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against mineral oil Resistant against oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature → Business Impact → Application: The 3G1 square flange receptacle with four crimp contacts provides a compact, secure mating interface that resists vibration, reducing intermittent connections in conveyor or robotics lines. This translates to fewer outages and steadier automation performance for high-cycle systems. Application: ideal for automated assembly lines and material handling where space is at a premium and reliability is mission-critical. Feature → Business Impact → Application: Push-Pull coupling with first mate last break capability enables fast, tool-free connection/disconnection while maintaining grounding integrity, lowering maintenance time and worker exposure. Application: serviceable mobile equipment and remote I/O panels. Feature → Business Impact → Application: UV-resistant, salt spray–tolerant polyamide insert in a plastic shell delivers long-term environmental resilience, lowering replacement frequency and warranty costs. Application: outdoor enclosures and harsh indoor environments. Feature → Business Impact → Application: IP68 sealing, 600 V UL / 500 V IEC voltage ratings, and 16 A current rating ensure regulatory compliance and safe operation under demanding conditions. Application: motor drives, pumps, and machine controllers in industrial automation. Feature → Business Impact → Application: 1000 mating cycles indicate durable connectors for frequent connect/disconnect cycles, supporting maintenance strategies and ROI targets. Application: robotics, packaging lines, and heavy machinery where connectors are cycled during servicing.
