Eaton UTL0103G1P16AWG UTL series power supply - IP68
Part Number: UTL0103G1P16AWG
Quick Summary
The Eaton UTL0103G1P16AWG is a compact uL/IEC power and control supply designed for 3G1 layouts in rugged industrial equipment. Engineers often struggle with reliable mating, environmental sealing, and field termination in tight panels. It meets IEC 61984 and UL 1977 requirements while delivering IP68 protection for washdown and harsh environments. This combination reduces installation risk and downtime by providing a dependable, sealed connection from the control cabinet to field devices. With a ground cavity, first mate last break capability, and a 16 A current rating, the UTL0103G1P16AWG enables safe power delivery in demanding machines, robotics, and packaging lines, while supporting fast maintenance and long service life.
Product Information
Extended Description

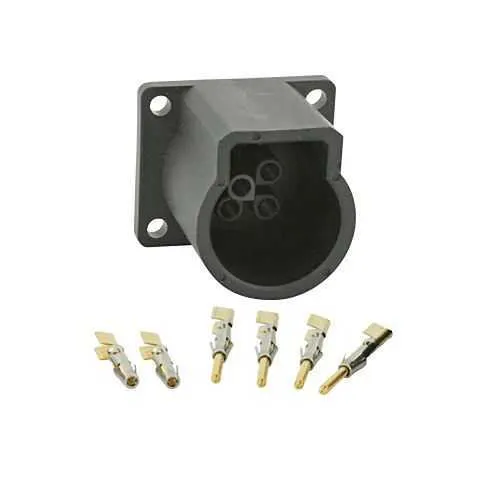

UTL0103G1P16AWG Eaton: Evaluation kit, with male square flange receptacle and contacts, 3G1 layout; UTL0103G1P16AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL0103G1P16AWG
Product Length/Depth
42 mm
Product Height
28.6 mm
Product Width
33.6 mm
Product Weight
16 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against basic bath Resistant against mineral oil Resistant against gasoline
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: 16 A current rating with 500 V IEC and 600 V UL test voltages. Benefit: Supports robust power delivery for high-demand automation components without the need for parallel connectors or oversized assemblies. Application: motor drives, servo controllers, and multi-axis systems in conveyors and packaging lines. Feature: 4 contacts in a 3G1 layout with a square flange receptacle and ground cavity. Benefit: simplifies panel mounting and grounding while ensuring reliable current paths in compact spaces. Application: control panels and machine hoods where space is at a premium. Feature: IP68 environmental resistance, -40 °C to 105 °C operating range, and RoHS/REACH compliance. Benefit: extends service life in outdoor, washdown, and high-temperature environments, reducing maintenance cost. Application: food & beverage, automotive assembly, and outdoor automation. Feature: Push-Pull coupling and unloaded contact delivery with first mate last break. Benefit: fast, secure mating and safe disconnection, minimizing installation time and field wiring errors. Application: panel-to-device assemblies in rugged environments. Feature: Polyamide insert, plastic shell, shell size 10, 1000 mating cycles. Benefit: durable materials deliver reliable electrical performance and predictable lifecycle in high-duty installations. Application: industrial robots, packaging lines, and heavy machinery. Feature: Compliance to IEC 61984 and UL 1977 with 16 A UL/IEC rating and 500 V IEC / 600 V UL test voltages. Benefit: regulatory alignment simplifies procurement and supplier qualification. Application: certified automation projects requiring standard-compliant connectors.
