Eaton UTL0103G1P20AWG UTL Power & Control Supply - IP68
Part Number: UTL0103G1P20AWG
Quick Summary
Eaton UTL0103G1P20AWG is a UL/IEC power and control supply for industrial automation applications. This compact kit supports reliable presence in control panels with a square flange receptacle and 4 male contacts in a 3G1 layout. Many engineers face challenges with mating reliability, environmental sealing, and maintenance overhead; this design mitigates those risks with push‑pull coupling and IP68 protection. Compliances include IEC 61984 and UL 1977, along with RoHS and REACH, ensuring regulatory alignment across global projects. The combination of lightweight polyamide inserts and a plastic shell delivers easier installation, while maintaining 16 A current rating and up to 500 V isolation, delivering measurable uptime and lifecycle value for OEMs and integrators.
Product Information
Extended Description

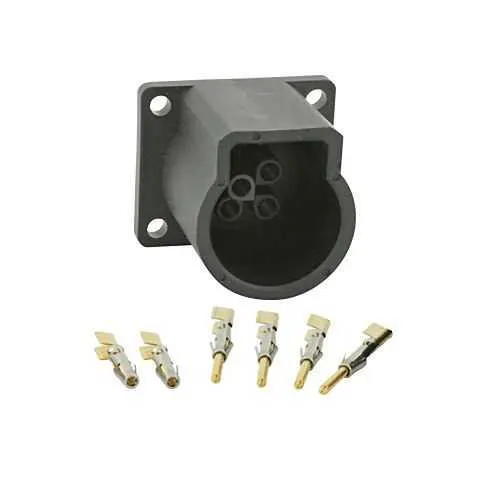

UTL0103G1P20AWG Eaton: Evaluation kit, with male square flange receptacle and contacts, 3G1 layout; UTL0103G1P20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL0103G1P20AWG
Product Length/Depth
42 mm
Product Height
28.6 mm
Product Width
33.6 mm
Product Weight
16 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: 4 contacts in a 3G1 layout and square flange receptacle. Business Impact: Enables a compact, robust connection that supports reliable power and control signaling in tight automation spaces, reducing installation time and wiring errors. Application: Control cabinets and machine housings where space is premium and dependable mating is essential. Feature: Push‑Pull coupling with IP68 protection. Business Impact: Simplifies mating/disengagement while maintaining superior environmental sealing, cutting maintenance downtime in harsh environments. Application: Outdoor enclosures, dusty factory floors, and washdown areas where ingress protection is critical. Feature: Polyamide insert and plastic shell. Business Impact: Lightweight yet durable housing with chemical and UV resistance, contributing to lower handle torque and longer service life. Application: Industrial robots, conveyors, and packaging equipment exposed to oils and cleaners. Feature: Wide operating temperature range (-40 °C to 105 °C). Business Impact: Ensures consistent performance across temperature swings common in manufacturing and outdoor settings, reducing failure risk. Application: Cold starts in refrigerated lines and hot processes in process industries. Feature: 16 A current rating and 500 V safety rating. Business Impact: Supports power and control circuits with robust electrical isolation, enabling safe operation and compliance with standards. Application: Power and control supply for ANSI/UL and IEC equipment in panel assemblies. Feature: 1000 mating cycles. Business Impact: Demonstrates lifecycle reliability for high‑duty installations, lowering total cost of ownership. Application: High‑cycle automation panels where connectors engage frequently during maintenance and reconfiguration. Note: No backshell option is available, which may influence enclosure sealing choices; engineers can compensate with integrated enclosure design and appropriate sealing methods.
