Eaton UTL0103G1S16AWG UTL series power and control supply - IP68
Part Number: UTL0103G1S16AWG
Quick Summary
The Eaton Souriau UTL series uL/IEC power and control supply is a compact solution delivering reliable control power for automation panels and mobile equipment. Engineers often face space constraints, difficult mating, and gaps in ground continuity in tight enclosures. The UTL0103G1S16AWG addresses these challenges with a 3G1 layout, square flange receptacle, and push‑pull coupling for fast, secure connections even in harsh environments. Compliant to IEC 61984 and UL 1977, it features IP68 protection and RoHS/REACH compliance, standing up to oil, UV exposure, and salt spray. For system integrators and maintenance teams, the 16 A rating, 600 V UL and 500 V IEC specifications, and four‑contact configuration translate to reduced wiring complexity, faster installs, and lower lifecycle costs.
Product Information
Extended Description

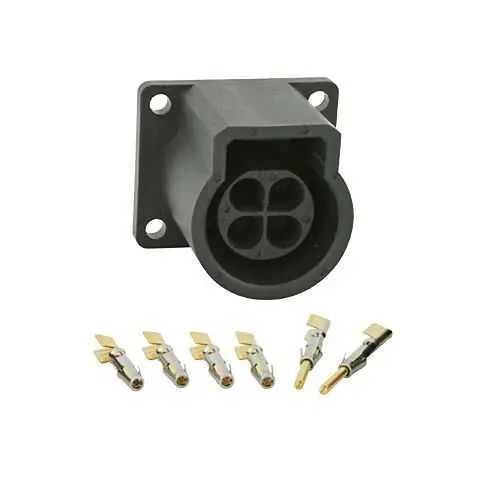

UTL0103G1S16AWG Eaton: Evaluation kit, with female square flange receptacle and contacts, 3G1 layout; UTL0103G1S16AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL0103G1S16AWG
Product Length/Depth
42 mm
Product Height
28.6 mm
Product Width
33.6 mm
Product Weight
16 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil Resistant against gasoline Resistant against acid bath Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: 3G1 layout with square flange receptacle and ground cavity. Business Impact: Enables a compact footprint and reliable grounding, simplifying panel design and reducing installation time. Application: Automation panels and machine interfaces. This arrangement supports easier alignment and consistent contact integrity in demanding environments. Feature: Push-Pull coupling. Business Impact: Fast mating and unmating with superior sealing, minimizing downtime during maintenance and field upgrades. Application: Mobile machinery and production lines where quick access is essential. Feature: 16 A current rating with 600 V UL and 500 V IEC ratings. Business Impact: Supports common power and control circuits without overdesign, lowering cost and simplifying supplier ecosystems. Application: Industrial automation, robotics, and control stations. Feature: Crimp contact delivery, 4 contacts, and square flange receptacle. Business Impact: Reduces assembly steps and ensures repeatable electrical performance. Application: High-reliability control interconnects in harsh environments. Feature: IP68 ingress protection, salt spray resistance, and UV stability. Business Impact: Delivers long-term durability in oily, outdoor, and challenging environments, reducing service calls. Application: Outdoor panels, oil-filled equipment, and production floors. Feature: Operating range -40 to 105 C and 1000 mating cycles. Business Impact: High resilience for demanding temperature shifts and repeated mating cycles. Application: Equipment subjected to thermal cycling and frequent maintenance. These attributes collectively enable faster installation, lower maintenance costs, and improved uptime for critical control power networks.
