Eaton UTL0103G1S20AWG Power & Control Receptacle - IP68
Part Number: UTL0103G1S20AWG
Quick Summary
The Eaton UTL0103G1S20AWG is a power and control supply receptacle designed for UL/IEC systems in industrial automation. This helps engineers overcome compatibility gaps, unreliable mating, and space constraints common in control panels. Compliances include UL 1977 and IEC 61984, IP68 sealing, RoHS and REACH, supporting safe operation in challenging environments. The kit format accelerates testing, while the square flange receptacle and ground cavity design streamline installation and service. With a 16 A / 600 V rating and 3G1 layout, it delivers reliable power and control connectivity for automation. Designed for high duty cycles and field replaceability, it supports rapid validation of manufacturing lines and equipment upgrades.
Product Information
Extended Description

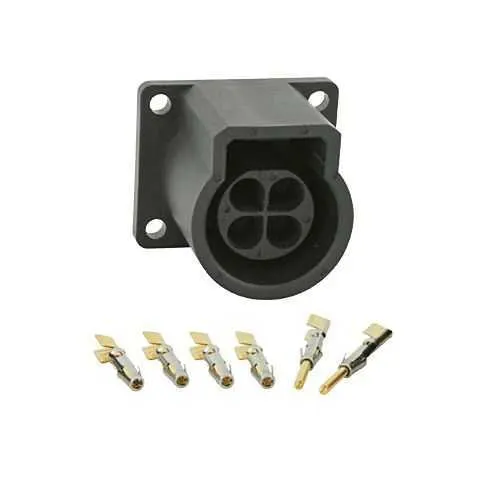

UTL0103G1S20AWG Eaton: Evaluation kit, with female square flange receptacle and contacts, 3G1 layout; UTL0103G1S20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL0103G1S20AWG
Product Length/Depth
42 mm
Product Height
28.6 mm
Product Width
33.6 mm
Product Weight
16 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against acid bath Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: 4-contact, square flange receptacle with a 3G1 layout provides a compact, panel-mounted solution. Business Impact: Reduces enclosure size while maintaining reliable power and control routing, enabling more compact control cabinets and easier harness routing. Application: Suitable for small automation panels in packaging, material handling, and manufacturing lines where space is a premium and frequent field service is expected. Feature: Push-Pull coupling and first mate last break capability. Business Impact: Enables quick, tool-free mating and safer disconnection for maintenance, minimizing downtime and preserving connector integrity after repeated cycles. Application: Field service, test benches, robotic cells, and line-side equipment where rapid connect/disconnect is essential. Feature: IP68 sealing and rugged materials (polyamide insert, plastic shell). Business Impact: Provides robust protection against dust and water ingress, extending service life in outdoor, automotive, and chemical plants; reduces warranty costs and downtime. Application: Outdoor enclosures, washdown environments, and offshore equipment. Feature: Electrical ratings 16 A UL/16 A IEC, up to 600 V UL / 500 V IEC; 4 cavities; 1000 mating cycles. Business Impact: Supports standard control-power loads with predictable life, enabling longer service intervals and lower maintenance costs. Application: Industrial machinery, robotics, and control nodes. Feature: RoHS, REACH, UL94 V0, salt spray 1000 h; Fitted with first mate last break capability; ground cavity; unloaded contact delivery; crimp contact type. Business Impact: Streamlines wiring, reduces labor time, and ensures regulatory compliance across supply chains. Application: System integrator panels and OEM equipment in regulated sectors. Feature: 3G1 layout, square flange mount, and compact dimensions (42 mm L x 33.6 mm W x 28.6 mm H). Business Impact: Easy integration with existing panel cutouts and harnesses, lowering engineering time and risk during integration. Application: Retrofit projects and new machine builds in discrete manufacturing and packaging lines.
Get a Quick Quote for a Eaton UTL0103G1S20AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL0103G1S20AWG?
Enquire Now
FAQs
Install by securing the square flange receptacle to the panel cutout using the provided mounting screws aligned with the 3G1 layout. Ensure the mating connector is unused during wiring, then crimp the conductors to the contacts before assembly. Verify ground cavity continuity and maintain IP68 integrity by avoiding foreign debris in the mating area.
The unit is rated for 16 A per UL and 16 A per IEC, with voltages up to 600 V UL and 500 V IEC. It features IP68 protection, 4 cavities, a -40 to 105 °C operating range, and supports up to 1000 mating cycles, making it suitable for demanding automation environments.
Yes. It uses rugged plastics and a polyamide insert with IP68 sealing, protecting against dust and water ingress. Its environmental resistance includes resistance to oils and UV exposure, enabling long-term reliability in outdoor, washdown, and chemical plant settings.
The connector complies with UL 1977 and IEC 61984 standards, with RoHS and REACH compliance, and UL94 V0 flame rating. These certifications support regulatory acceptance in regulated industries and help simplify procurement for compliant automation projects.
The 1000 mating cycles, 16 A/600 V capability, and first mate last break design reduce replacement frequency and maintenance downtime. IP68 protection lowers failure risk in harsh environments, while RoHS/REACH compliance streamlines supply-chain and regulatory considerations, delivering lower total cost of ownership over machine life.
