Eaton UTL10DCG Power and Control Supply - IP67 Push-Pull
Part Number: UTL10DCG
Quick Summary
The Eaton UTL10DCG is a power and control supply for UL/IEC connectors used in rugged automation equipment. This component addresses the common challenge of maintaining reliable power and signal integrity in harsh environments. With IP67 protection and UL94 V0 flame resistance, along with RoHS and REACH compliance, the unit is built for long service life in demanding applications. Lightweight and compact, the UTL10DCG reduces panel space and simplifies wiring, while offering robust mating cycles. Its Push-Pull coupling facilitates quick mating and disconnection, improving maintenance efficiency and uptime in automated lines. Designed for 1000 mating cycles, it supports mid-life upgrades without frequent part replacements and keeps overall system costs in check.
Product Information
Extended Description

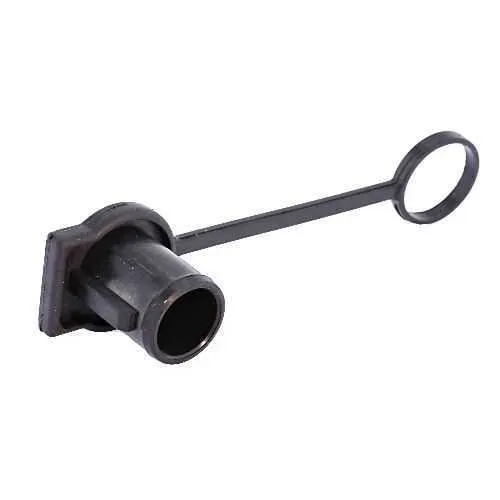

UTL10DCG Eaton: IP67 dustcap for size 10 receptacle; UTL10DCG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL10DCG
Product Length/Depth
117.6 mm
Product Height
30 mm
Product Width
29.6 mm
Product Weight
10 g
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against mineral oil Resistant against gasoline Resistant against oil
Coupling type
Push-Pull
Degree of protection
IP67
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
The UTL10DCG’s IP67 rating delivers reliable ingress protection, enabling operation in dusty or wet environments and reducing the risk of field failures, which translates to lower maintenance and downtime. This is paired with a UL94 V0 rated plastic shell that enhances fire safety in control panels and enclosures, supporting compliance with stringent safety standards while keeping weight to a minimum. The Push-Pull coupling simplifies installation and maintenance, enabling fast mate/unmate cycles and reducing service time during line changes or diagnostics. With a shell size 10 and compact dimensions (117.6 mm length, 29.6 mm width, 30 mm height) plus a light 10 g weight, it frees panel space and supports tight installation envelopes in compact automation dashboards. The unit is approved for wide operating temperatures (-40 °C to 105 °C), ensuring reliable performance across outdoor, industrial, and exposure-prone applications. Mating cycles rated at 1000 demonstrate durability and lifecycle resilience, helping lower replacement costs and extend asset life. In addition, its resistance to acids, bases, mineral oil, gasoline, and UV exposure reinforces long-term reliability in challenging environments, while RoHS and REACH compliance streamline procurement and regulatory alignment. The combination of robust mechanical design and environmental resilience makes the UTL10DCG a compatible, installation-friendly choice for industrial panels, robotics, and rugged machinery that demand dependable power and control supply connectivity. Consider this solution when you need a compact, high-durability connector interface that reduces maintenance windows, supports ISO/IEC wiring practices, and maintains performance in harsh service conditions.
Get a Quick Quote for a Eaton UTL10DCG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL10DCG?
Enquire Now
FAQs
The UTL10DCG is designed for Eaton Souriau UTL series UL/IEC power and control connectors using a Push-Pull coupling. It aligns with standard UL/IEC mating interfaces, ensuring reliable mating and consistent electrical contact while enabling straightforward field maintenance and panel integration.
This part operates from -40 °C to 105 °C and has an IP67 rating, providing protection against dust ingress and immersion in water up to a certain depth. These specs support reliable performance in both harsh outdoor environments and demanding indoor installations.
The UTL10DCG is rated for 1000 mating cycles, offering durable, repeated connect/disconnect capability suitable for automation lines, robotics, and periodic maintenance without frequent part replacement.
Yes. With IP67 protection, UL94 V0 flammability rating, and resistance to acids, bases, mineral oils, gasoline, and UV exposure, the unit maintains performance and safety in outdoor, industrial, and exposure-prone settings.
Ensure proper mating alignment, use the Push-Pull coupling correctly for secure engagement, and maintain enclosure integrity to preserve IP67 protection. Follow RoHS/REACH guidelines for materials, and verify the operating temperature range matches the application during design and commissioning to avoid thermal stress.
