Eaton UTL1102G1W3P Inline Receptacle - IP68 Rated
Part Number: UTL1102G1W3P
Quick Summary
Eaton UTL1102G1W3P inline receptacle delivers reliable power and control connections for industrial automation systems. This rugged inline receptacle supports uL/IEC power and control supply in a compact 2G1W3 layout, reducing panel footprint. Designs often suffer from water ingress, corrosion, and mismatched mating cycles, leading to downtime and costly maintenance. The UTL1102G1W3P carries IP68 protection and IEC 61984/UL 1977 compliance, ensuring long-term reliability in harsh environments. Its 16 A current rating at 600 V UL / 500 V IEC, -40 to 105 C operating range, and robust plastic shell provide a strong balance of safety, performance, and ease of installation. This translates into lower total cost of ownership through improved uptime and faster, safer harness assembly.
Product Information
Extended Description

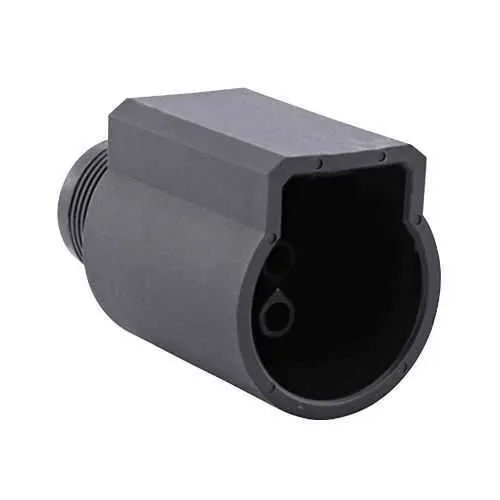

UTL1102G1W3P Eaton: Male in-line receptacle, 2G1W3 layout; UTL1102G1W3P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1102G1W3P
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
14.3 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
Feature: 16 A current rating with 600 V UL and 500 V IEC compatibility enables high-load devices to be powered through a single inline receptacle, reducing part count and assembly time. Business Impact: fewer junctions mean lower heat generation and improved system reliability. Application: ideal for power and control lines in machine panels and automation cabinets. Feature: IP68 ingress protection and a ground cavity arrangement with first mate last break capability provide robust sealing even in washdown or outdoor environments. Business Impact: minimizes field faults and downtime, extending service intervals and reducing maintenance costs. Application: robotics cells, packaging lines, and outdoor automation enclosures. Feature: 2G1W3 layout with six contacts (pin/male) and crimp contact technology supports reliable, consistent mating. Business Impact: reduces rework and inspection time while delivering repeatable electrical performance. Application: harness assemblies and modular power distributions in machine tools. Feature: Push-Pull coupling paired with a plastic shell and polyamide insert enhances installation speed and mechanical integrity. Business Impact: faster field assembly, easier slip-fit mating, and improved vibration resistance. Application: quick-connect power harnesses in high-vibration environments. Feature: Operating temperature range of -40 °C to 105 °C and resistance to oils, fuels, and solvents. Business Impact: expands usable environments and minimizes failures due to thermal cycling. Application: industrial floors, outdoor installations, and washdown zones. Feature: Fitted with: Layout 2G1W3, ground cavity options, and an overmoldable connector accessory option. Business Impact: flexible integration into molded cable assemblies, reducing custom tooling. Application: integrated control solutions and customized harnesses for OEMs.
