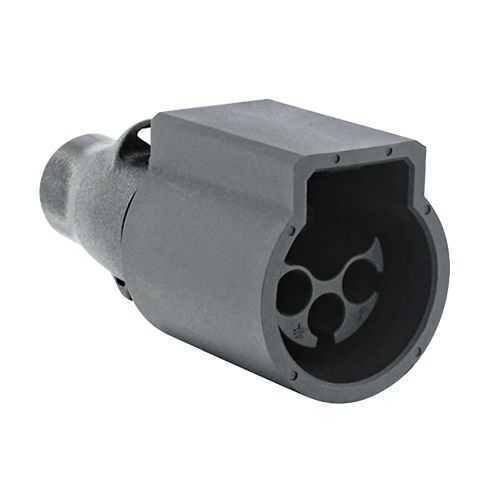

Eaton UTL1102G1W3SCDMX UTL series - IP68 Receptacle
Part Number: UTL1102G1W3SCDMX
Quick Summary
UTL1102G1W3SCDMX is a rugged power and control supply designed for inline connections in harsh industrial environments. The unit delivers dependable power and signaling to equipment while withstanding exposure to dust, water, and oils. Many installers struggle with seals that degrade under vibration, causing corrosion or intermittent contact; this receptacle addresses those pains with a reinforced IP68 rated body and UV resistant materials. The design is compliant with IEC 61984 and UL 1977, with RoHS and REACH coverage to simplify regulatory processes and supplier audits. Operating from -40 °C to 105 °C and rated for 16 A at 600 V, it supports heavy-duty machinery. By leveraging the 2G1W3 layout and ground cavity, it enables straightforward field wiring and long-term cost savings.
Product Information
Extended Description
UTL1102G1W3SCDMX Eaton: Terminating 120ohm receptacle, for male plug, 2G1W3 layout; UTL1102G1W3SCDMX
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1102G1W3SCDMX
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
20 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Fitted with:
Layout with ground cavity
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against mineral oil Resistant against oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector type
Receptacle
Contact delivery
Loaded
Contact gender
Socket (Female)
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
Feature → Business Impact → Application: IP68 sealing and UV resistance reduce ingress risk and long-term degradation, enabling reliable operation in outdoor or washdown environments while lowering maintenance cycles and replacement costs; Ideal for conveyors, robotic cells, and heavy machinery where exposure to moisture and contaminants is routine. Feature → Business Impact → Application: 16 A at 600 V rating supports higher power and control demands without frequent upgrades, improving machine uptime and reducing panel space needs in automation cabinets across manufacturing lines. Feature → Business Impact → Application: 6 contacts across 3 cavities #16 and 3 cavities #20 offer flexible wiring for mixed power and sensing needs, simplifying harness design and reducing assembly time in OEM builds. Feature → Business Impact → Application: Push-Pull coupling and in-line receptacle layout enable quick, secure mating with consistent alignment, accelerating field maintenance and minimizing downtime in production environments. Feature → Business Impact → Application: -40 °C to 105 °C operating range and high mating cycles (1000) deliver rugged life-cycle performance for demanding industries such as packaging, metallurgy, and automotive tooling. Feature → Business Impact → Application: Polyamide insert and plastic shell provide chemical and impact resistance, improving longevity in harsh environments while allowing relatively light-weight housings for easier handling on the line.
