Eaton UTL1103G1P Power & Control Supply - IP68
Part Number: UTL1103G1P
Quick Summary
Eaton UTL1103G1P powers compact UL/IEC power and control connections for rugged industrial equipment. Manufacturers often struggle with unreliable mating and poor environmental sealing in harsh operating conditions, leading to downtime and maintenance costs. It meets UL 1977 and IEC 61984 compliance, and offers IP68 protection, plus a robust 16 A current rating. Designed for fast, push-pull coupling and a 4‑circuit inline receptacle, it delivers reliable power and control connectivity in automation. This compact solution reduces panel space and simplifies installation, delivering value through improved uptime and lifecycle efficiency for industrial machinery.
Product Information
Extended Description

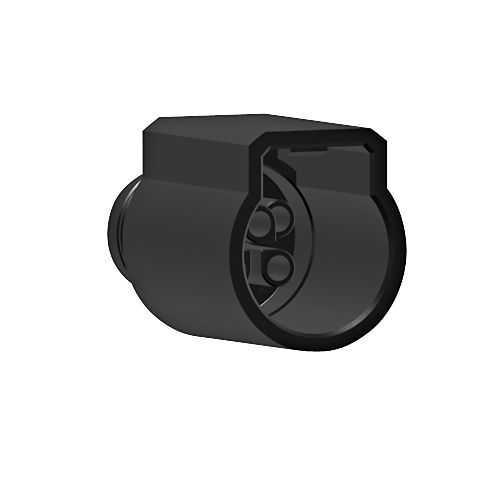

UTL1103G1P Eaton: Male in-line receptacle, 3G1 layout; UTL1103G1P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1103G1P
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
14.3 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: Push-Pull coupling and inline receptacle layout. Benefit: Faster mating and maintenance, reducing downtime during servicing and field swaps, especially in confined control panels. Application: Robotic arms, conveyors, and automated assembly lines where quick connect/disconnect is essential. Feature: IP68 environmental protection and wide operating temperature (-40 °C to 105 °C). Benefit: Superior sealing against dust and moisture, enabling reliable operation in wet or dusty environments, lowering repair costs and extending service intervals. Application: Outdoor machinery, food & beverage lines, and outdoor automation applications. Feature: 16 A current rating and 600 V UL/500 V IEC rating. Benefit: Supports high-power control circuits and motorized loads without overrating connectors, improving efficiency and reducing wiring complexity. Application: Control panels and power distribution in heavy automation. Feature: 4 contacts with Crimp contact delivery and ground cavity option. Benefit: Secure, dependable connections with durable mating cycles (1000) and reduced contact resistance over time. Application: Industrial controls requiring robust signal and power paths. Feature: Material and compliance mix Polyamide shell, plastic shell, RoHS/REACH adherence. Benefit: Durability in rugged environments with regulatory compliance, simplifying procurement and scheduling audits. Application: Global manufacturing environments with strict sustainability and safety standards.
