Eaton UTL1103G1P14AWG UTL Series Receptacle - IP68
Part Number: UTL1103G1P14AWG
Quick Summary
Eaton UTL1103G1P14AWG is an inline power and control supply receptacle designed for rugged UL/IEC systems used in industrial automation. Engineers often struggle with compact form factors that still meet environmental and lifecycle demands in challenging facilities. The UTL1103G1P14AWG delivers reliability with IEC 61984 and UL 1977 certifications and IP68 protection, enabling safe operation in dirty or damp environments. Its 28.6 mm footprint, 4-pin crimp contacts, and push-pull coupling reduce installation time and field rework. This solution also aligns with RoHS and REACH requirements, supporting sustainable procurement while maintaining performance in control cabinets and equipment housings.
Product Information
Extended Description

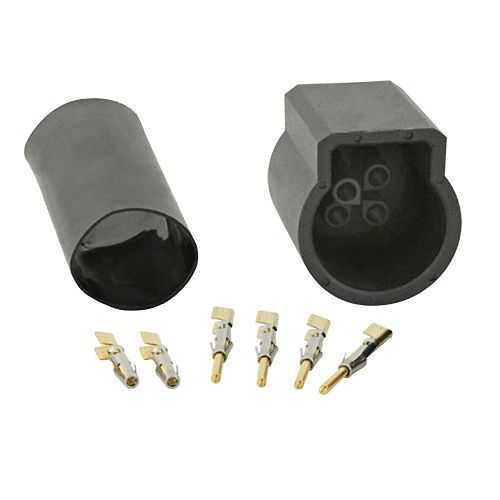

UTL1103G1P14AWG Eaton: Evaluation kit, with male in line receptacle and contacts, 3G1 layout; UTL1103G1P14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1103G1P14AWG
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
14.3 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against oil Resistant against mineral oil Resistant against gasoline
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature → Business Impact → Application: Current rating of 16 A IEC / 16 A UL ensures the unit can handle typical motor control and sensing loads without overheating, reducing fuse trips and downtime in automation panels; ideal for compact power and control subsystems in packaging lines or material handling. Feature → Business Impact → Application: 500 V IEC / 600 V UL voltage ratings enable safe, compliant power delivery for mixed-voltage control circuits, minimizing insulation concerns in harsh installations such as wash-down zones. Feature → Business Impact → Application: IP68 protection plus UV and chemical resistance yield durability in outdoor enclosures and exposed equipment, lowering maintenance cycles and replacement costs in outdoor conveyors and remote stations. Feature → Business Impact → Application: 3G1 layout with a ground cavity and first mate last break improves fault isolation and serviceability, speeding field replacements and reducing MTTR in complex junctions. Feature → Business Impact → Application: Four crimp contacts and line receptacle design simplify assembly and wiring harness creation, enabling faster machine builds and easier replacements in control panels. Feature → Business Impact → Application: Push-Pull coupling with in-line receptacle reduces installation time and tool requirements, beneficial for frequent field maintenance in aerospace, automotive, or food-and-beverage equipment. Feature → Business Impact → Application: Operating temperature range of -40 to 105 °C supports equipment operating in extreme environments, including high-heat production zones and cold storage applications, ensuring consistent performance. Feature → Business Impact → Application: Salt spray, UV, and basic oil resistance provide long-term reliability in corrosive or outdoor environments, minimizing corrosion-related failures in rugged machinery. Feature → Business Impact → Application: Insert Polyamide and Shell Plastic materials meet lightweight yet durable construction standards, aiding in compact module designs and reducing overall system weight in portable or mounted assemblies.
