Eaton UTL1103G1P20AWG Power & Control Supply - IP68 Rated
Part Number: UTL1103G1P20AWG
Quick Summary
The Eaton UTL1103G1P20AWG power and control supply provides rugged, UL/IEC-ready power connections for inline control panels. Engineers often struggle with reliable mating, environmental sealing, and maintenance in harsh environments where connectors must survive vibration, temperature swings, and chemical exposure. Compliances include IEC 61984 and UL 1977, with IP68 sealing and operating range from -40 °C to 105 °C, ensuring long-term durability. The design leverages a 3G1 layout, ground cavity, and first mate last break capability to minimize mis-wires and downtime. This solution pairs a compact footprint with 16 A / 600 V (UL) and 16 A / 500 V (IEC) ratings, delivering dependable industrial connectivity for automated systems.
Product Information
Extended Description

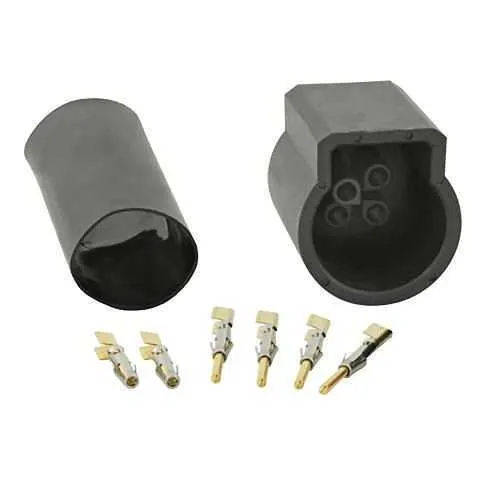

UTL1103G1P20AWG Eaton: Evaluation kit, with male in line receptacle and contacts, 3G1 layout; UTL1103G1P20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1103G1P20AWG
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
14.3 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against oil Resistant against mineral oil Resistant against basic bath
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature is an inline receptacle with a 3G1 layout and 4 contacts plus crimp delivery. Business Impact: simplifies harness assembly, reduces wiring errors, and improves field reliability. Application: ideal for inline power and control connections in control cabinets and equipment housings. The IP68-rated shell and polyamide insert offer superior environmental protection, delivering reliability in outdoor and wet environments and enabling longer service intervals. Application value: decreased downtime and lower maintenance costs in harsh industrial settings. Feature: operating temperature range -40 °C to 105 °C with UV, oil, and acid resistance. Business Impact: maintains performance across temperature swings and exposure to common workshop fluids. Application: long-term operation in manufacturing lines and outdoor installations. Feature: 600 V UL and 500 V IEC test voltages with a 16 A current rating. Business Impact: ensures safe, standards-compliant operation under peak load; Application: automation panels requiring robust power delivery. Feature: 1000 mating cycles and ground cavity First Mate Last Break capability. Business Impact: extends connector life and reduces rework during panel wiring; Application: high-cycle automation equipment. Feature: push-pull coupling and 4-pin/crimp contact arrangement. Business Impact: simplifies maintenance, enables quick mating/demate, and supports modular harnessing; Application: scalable setups for machine fleets and modular subassemblies.
Get a Quick Quote for a Eaton UTL1103G1P20AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL1103G1P20AWG?
Enquire Now
FAQs
To install, mount the inline receptacle in the designated panel opening, ensure the ground cavity engages with the mating connector, and use crimp contacts with the proper tooling for reliable crimp integrity. The push-pull coupling allows quick mating, while the 3G1 layout aligns with four cavities, reducing wiring errors. Verify IP68 sealing after installation and test continuity under load to confirm proper operation.
This receptacle supports 16 A current rating with test voltages of 600 V UL and 500 V IEC. It provides robust power and control connections suitable for UL 1977 and IEC 61984 compliant systems. The product is designed for inline power distribution in industrial automation panels, ensuring safe operation at peak loads and across varying supply conditions.
Yes. The connector is IP68 rated, offering excellent sealing against water ingress and dust. It uses a polyamide insert and a plastic shell designed to withstand UV exposure and harsh chemical contact. This makes it suitable for outdoor installations, factory floors, and equipment exposed to moisture, oil, and solvents.
The UTL series aligns with IEC 61984 and UL 1977, providing clear regulatory alignment for power and control interfaces. Operating temperature ranges from -40 °C to 105 °C, with UV resistance and RoHS/REACH compliance. The combination supports reliable performance in demanding industrial environments and ensures compatibility with standard automation equipment.
With a 1000 mating cycle rating, the UTL1103G1P20AWG is designed for moderate-to-high reuse in maintenance-heavy environments. Its robust IP68 sealing and ground cavity features reduce ingress risk and wiring faults. Routine inspection of mating interfaces and periodic torque checks on mounting points help maximize lifecycle and minimize unexpected downtime in production lines.
