Eaton UTL1103G1S14AWG UTL series uL/IEC power and control supply - IP68
Part Number: UTL1103G1S14AWG
Quick Summary
Eaton UTL1103G1S14AWG is a UL/IEC power and control supply designed for rugged industrial automation applications. Operators often contend with unreliable connections and tight spaces in control panels, and traditional connectors can fail under vibration or exposure to contaminants. This inline receptacle features a 3G1 layout with a ground cavity to improve mating reliability while delivering IP68 sealing for washdown and harsh environments. It carries IEC 61984 and UL 1977 compliance alongside RoHS/REACH and UL94 V0 ratings, supporting safe operation across regulated industries. The design enables quick wiring with 14 AWG conductors and 16 A current rating, delivering predictable performance and reducing maintenance downtime in factory automation and equipment control.
Product Information
Extended Description

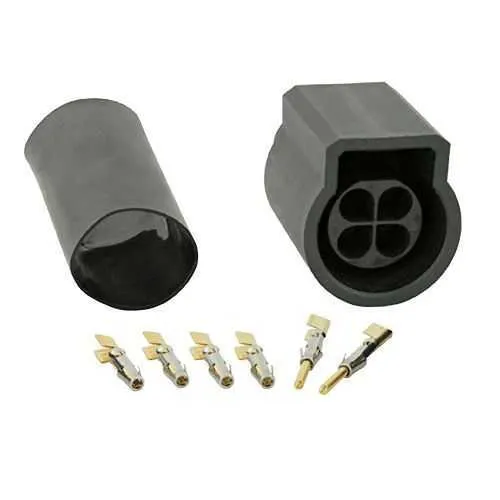

UTL1103G1S14AWG Eaton: Evaluation kit, with female in line receptacle and contacts, 3G1 layout; UTL1103G1S14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1103G1S14AWG
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
14.3 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against acid bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature covers the 3G1 inline receptacle with a ground cavity and first mate last break capability, delivering a robust, space-efficient connection that reduces wiring errors and enhances service life. Business impact: improved reliability in vibration-heavy machinery and simpler field maintenance. Application: control panels, robotics, and conveyor systems in harsh environments. The IP68-rated enclosure protects sensitive contacts from dust and water ingress, enabling use in washdown areas and outdoor installations. Business impact: lower replacement costs and fewer unplanned outages. Application: food and beverage, automotive, and packaging lines where cleanliness and durability matter. The 16 A current rating and up to 500 V IEC / 600 V UL capability support typical motor and controller loads, reducing the need for oversized wiring and cutting installation time. Business impact: optimized wiring schemes and cost savings on cabling. Application: industrial automation equipment requiring reliable inline power and control supply. Material selection, polyamide insert and plastic shell, provides chemical resistance and light weight; business impact: easier handling and longer life in cluttered panels. Application: machines exposed to oils, coolants, and UV exposure. With 1000 mating cycles and a crimp contact system (socket female), installation is straightforward and service-friendly; business impact: predictable lifecycle costs and rapid field replacement. Application: equipment upgrades and OEM integrations. Compliance with REACH, RoHS, and UL94 V0 supports regulatory alignment; business impact: faster time-to-market and risk mitigation. Application: regulated manufacturing environments and global deployments.
